| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |  |
|||
| 2 | WP2264462 | Grommet (Replaces:2197380) | |
|||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces:W10709194) | |
|||
| 4 | W10920316 | Cover, Light (Replaces:W10628684) | |
|||
| 5 | WP941839 | Hole Plug (white) | |
|||
| 6 | WP488163 | Screw (Replaces:488208) | |
|||
| 7 | W10637672 | Wire Assembly, Control Box | |
|||
| 8 | 4387478 | Socket, Light (Replaces:2162085) | |
|||
| 9 | W11544659 | Screw (Replaces:8281232) | |
|||
| 10 | WP2315539 | Motor, Evaporator Fan | |
|||
| 11 | WP2163777 | Blade, Fan (Replaces:2200509) | |
|||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces:W10676682) | |
|||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces:W10556397) | |
|||
| 14 | W10677275 | Cover, Hole | |
|||
| 15 | WPW10383615 | Thermistor, Freezer Evaporator | |
|||
| 16 | W11024683 | Cover, Evaporator (Replaces:W10668482) | |
|||
| 17 | W11338583 | Lamp, Led (Replaces:W10820003) | |
|||
| 18 | 2254454 | Bracket, Evaporator Fan Rear | |
|||
| 19 | W11384469 | Switch, Rocker Arm (Replaces:1118894) | |
|||
| 20 | N/P | Bi-metal Defrost (not Serviced) | |
|||
| 21 | W10637058 | Cover, Air Diffuser | |
|||
| 22 | WPW10313917 | Housing, Freezer Lighting | |
|||
| 23 | W11244470 | Baffle, Air Manual (Replaces:W10570951) | |
|||
| 24 | W10677734 | Assembly, Air Diffuser | |
|||
| 25 | W11502499 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces:W10646206) | |
|||
| 26 | W11026417 | Knob, Air Control (Replaces:W10570952) | |
|||
| 27 | WPW10339203 | Cover, Water Tube | |
|||
| 28 | WPW10674683 | Control, Electronic | |
|||
| 29 | W10850162 | Bracket, Fan Motor (Replaces:W10321162) | |
|||
| 30 | W10854527 | Cover, Screw (Replaces:W10487421) | |
|||
| 31 | W11353815 | Assembly, Control Box (Replaces:W10674685) | |
|||
| 32 | W10705785 | Cover, Air Filter | |
|||
| 33 | W10336009 | Cup, Screw | |
|||
| 34 | WPW10330850 | Grille, Air Filter Bottom | |
|||
| 35 | W11518235 | Lamp, Led (Replaces:W10574850) | |
|||
| 36 | W11661565 | Socket, Light (Replaces:W10440814) | |
|||
| 37 | WPW10313918 | Lens, Light | |

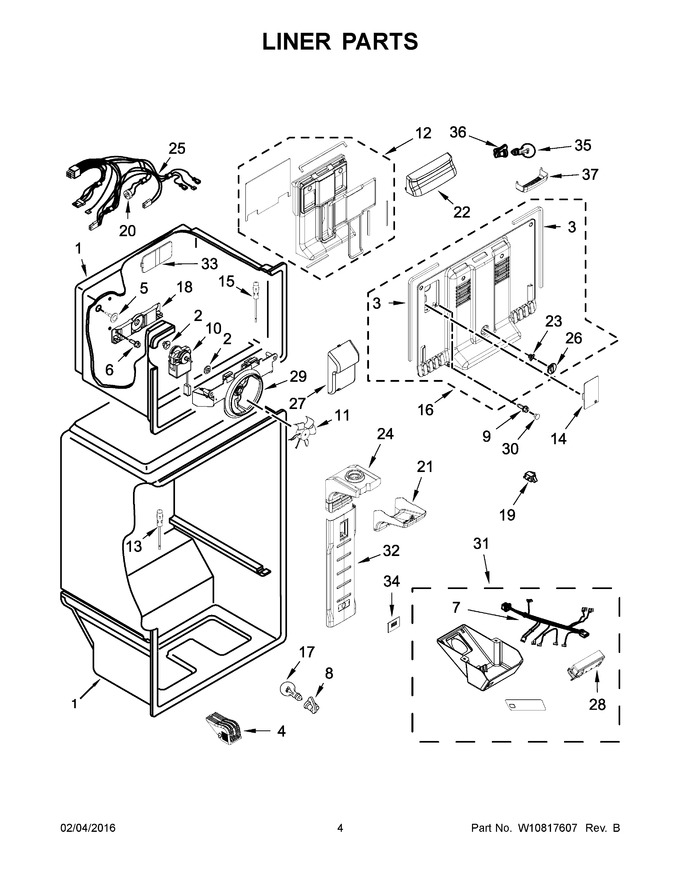

View Diagram in Separate Window
