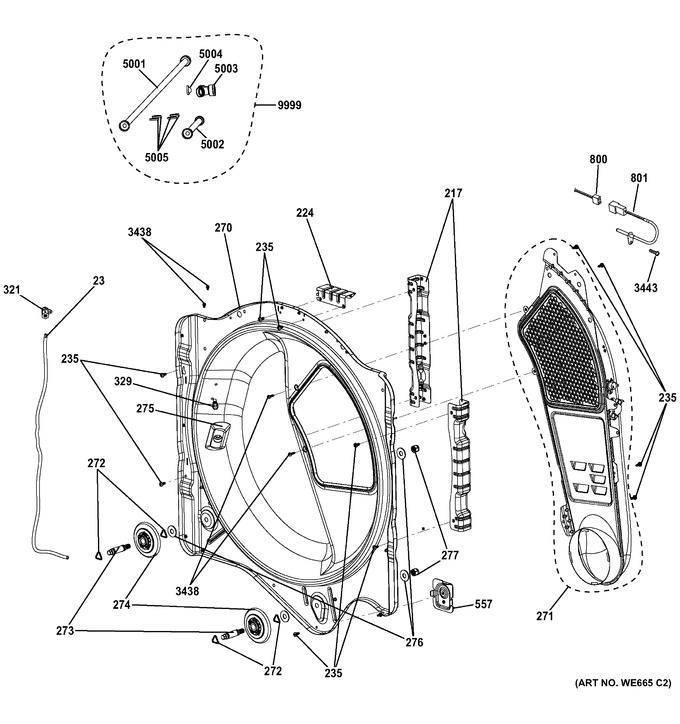

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 23 | WE1M1035 | Tube |  |
|||
| 217 | WE1M1061 | Bracket Rear Roller | |
|||
| 224 | WE1M1062 | Bracket Top | |
|||
| 235 | WE2X263 | Scr | |
|||
| 270 | WE20M512 | Support Roller Rear | |
|||
| 271 | WE14M214 | Transition Duct Asm | |
|||
| 272 | WE1M1065 | Lock | |
|||
| 273 | WE3M53 | Shaft Roller | |
|||
| 274 | WE12M39 | Wheel | |
|||
| 275 | WE1M1037 | Support Nozzle | |
|||
| 276 | WE2M312 | Washer Plain 3/8 | |
|||
| 277 | WE2M311 | Nut Hex 3/8-24 Unf 2b | |
|||
| 321 | WE1M943 | Elbow & Nozzle Asm | |
|||
| 329 | WE1M944 | Nozzle | |
|||
| 557 | WE1M1089 | Bracket Bottom | |
|||
| 800 | WE26M412 | Harness Elec Asm | |
|||
| 801 | WE4M550 | Thermistor Inlet | |
|||
| 3438 | WE2M282 | Scr 6-18 B B1q1 3/4 S Zn | |
|||
| 3443 | WE1M280 | Screw | |
|||
| 5001 | WE1M847 | Inlet Hose (long) | |
|||
| 5002 | WE1M848 | Inlet Hose(short) W/m & | |
|||
| 5003 | WE1M849 | Y Adaptor | |
|||
| 5004 | WE1M850 | Screen For Washer Hose | |
|||
| 5005 | WE1M851 | Rubber Washer For Intake | |
|||
| 9999 | WE25M53 | Hose Inlet Asm - Kit | |
