| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |  |
|||
| 198 | WE2M200 | Screw | |
|||
| 201 | WE16M24 | Blower Wheel | |
|||
| 204 | WE1X921 | Motor Bracket | |
|||
| 205 | WE13M69 | Support U | |
|||
| 215 | WE12M38 | Idler Arm Asm | |
|||
| 218 | WE14M213 | Blower Housing Asm | |
|||
| 225 | WE1M966 | Blower Gasket (exhaust) | |
|||
| 239 | WE2M167 | Screws | |
|||
| 403 | WE1M1069 | Bracket Switch | |
|||
| 412 | WE1M1071 | Bracket Idler Arm | |
|||
| 630 | WE17M67 | Motor And Pulley Asm | |
|||
| 635 | WE26M393 | Harness Blower Asm | |
|||
| 715 | WD2M101 | Scr | |

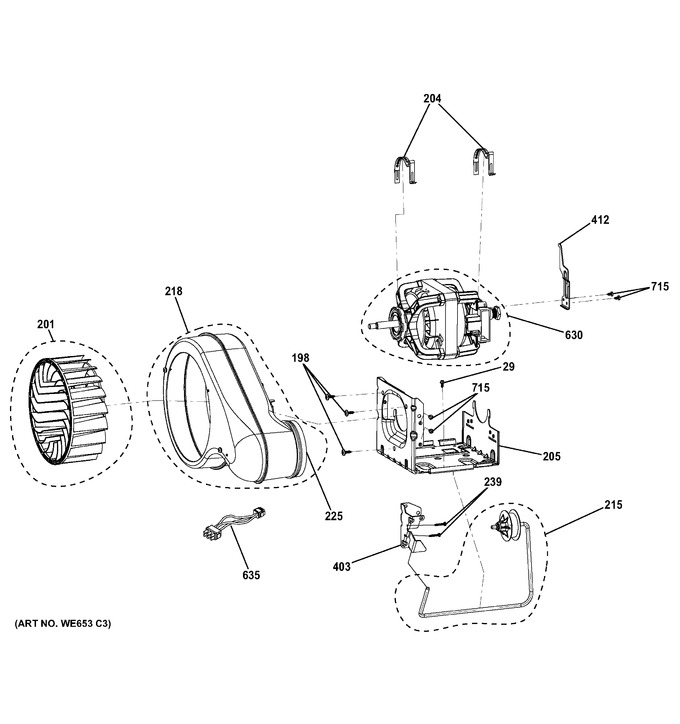

View Diagram in Separate Window
