1 - Control Panel


2 - Blower & Motor

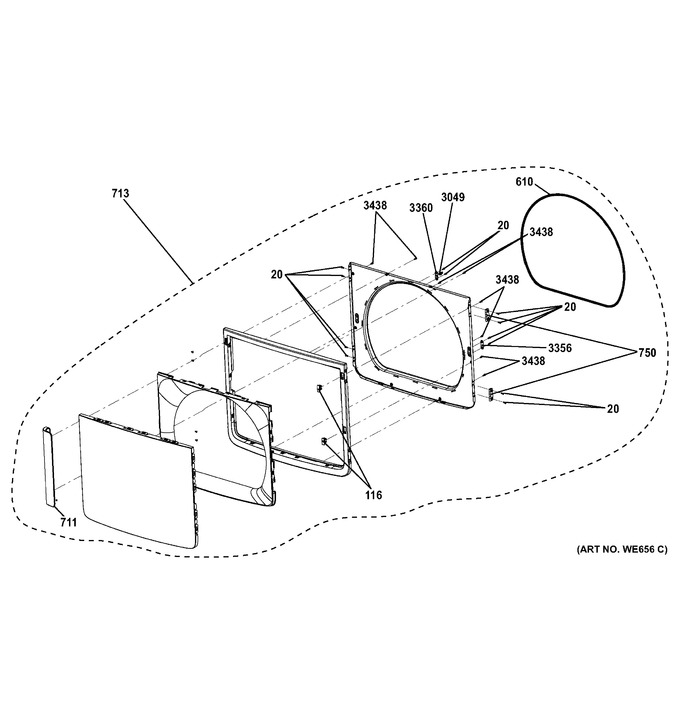

3 - Door Assembly


4 - Cabinet


5 - Electric Heater & Brackets


6 - Front Roller Support


7 - Rear Roller Support


Diagram #	Part Number		Description	Series	Find a Video
20	WE2M302		Screw
116	WE1M1054		Cap Beauty
610	WE9M60		Gasket Door
711	WE1M1079		Handle Door
713	WE10M167		Door Glass Asm
750	WE1M1033		Hinge
3049	WE01M10007		Strike
3356	WE1M569		Strike Plate
3360	WE1M570		Strike Plate W/strk Hole
3438	WE2M282		Scr 6-18 B B1q1 3/4 S Zn
