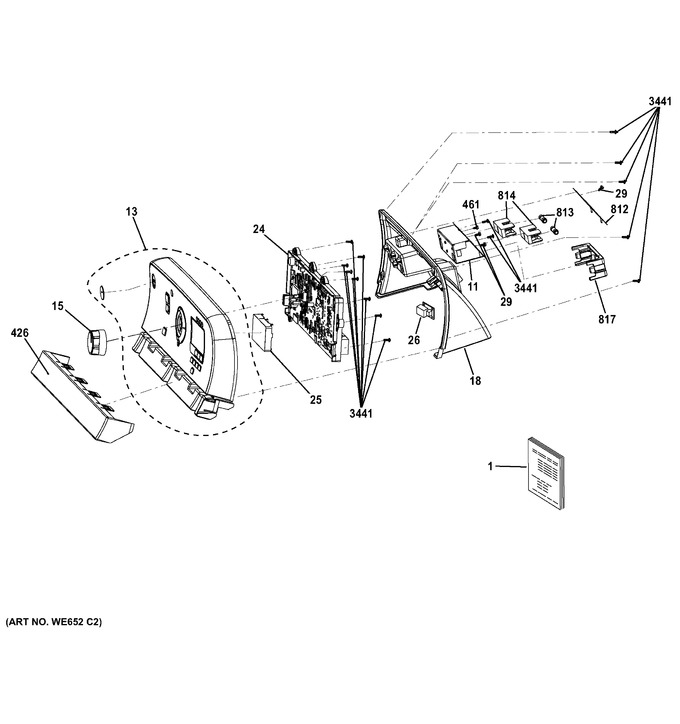

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 49-90462 | Pm Manual Use & Care |  |
|||
| 31-16697 | Pm Instructions Install | |
||||
| 31-16856 | Pm Mini Manual | |
||||
| 11 | WE1M1080 | Enclosure Fuse | |
|||
| 13 | WE19M1760 | Panel Control Asm | |
|||
| 15 | WH01X10679 | Knob Asm | |
|||
| 18 | WE19M1753 | Panel Back Asm | |
|||
| 24 | WE4M544 | Platform & Board Asm | |
|||
| 25 | WE5M100 | Guide Light & Label Asm | |
|||
| 26 | WE4M549 | Board Dsm | |
|||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn | |
|||
| 426 | WE12M53 | Top Trim Piece | |
|||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr | |
|||
| 812 | WE1M1081 | Lid Fuse | |
|||
| 813 | WE1M1002 | Fuse Ccmr 30 Amp 120v | |
|||
| 814 | WE1M1003 | Holder Fuse | |
|||
| 817 | WE1M1094 | Cover Terminal | |
|||
| 3441 | WE2M211 | Screw Front | |
