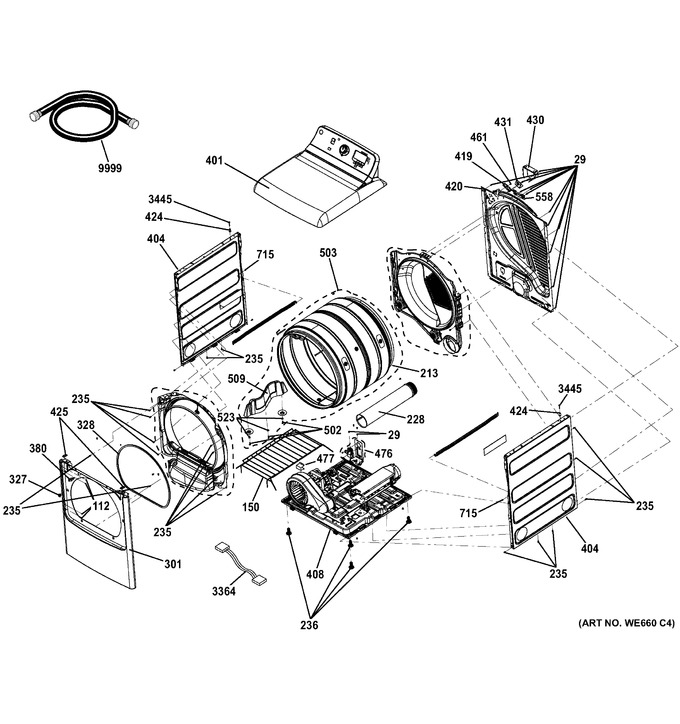

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |  |
|||
| 112 | WE1M934 | Plug Button White | |
|||
| 150 | WE1M1038 | Shoe Rack | |
|||
| 213 | WE12M37 | Belt Drive | |
|||
| 228 | WE14M107 | Exhaust Duct | |
|||
| 235 | WE2X263 | Scr | |
|||
| 236 | WE1M1097 | Foot Leveling | |
|||
| 301 | WE20M497 | Panel Front | |
|||
| 327 | WE1M1011 | Latch Door | |
|||
| 328 | WE9M62 | Gasket Foam Front Pnl | |
|||
| 380 | WE4M415 | Door Switch | |
|||
| 401 | WE20M500 | Cover Top | |
|||
| 404 | WE20M496 | Panel Side | |
|||
| 408 | WE20M495 | Chassis Base | |
|||
| 419 | WE4M525 | Term Blk & Grnd Strap | |
|||
| 420 | WE20M498 | Panel Rear | |
|||
| 424 | WE1M1093 | Guide | |
|||
| 425 | WE1M1075 | Clip Locking | |
|||
| 430 | WE1M1059 | Cover Block Terminal | |
|||
| 431 | WE01X20423 | Strain Relief Bracket El | |
|||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr | |
|||
| 476 | WE40M108 | Valve Water Asm | |
|||
| 477 | WE1M1092 | Shield Valve | |
|||
| 502 | WE2M174 | Screw # 10 | |
|||
| 503 | WE21M49 | Drum & Baffle Asm | |
|||
| 509 | WE14X21614 | Baffle | |
|||
| 523 | WE2M176 | Insulated Washer | |
|||
| 558 | WE1M1090 | Bracket | |
|||
| 715 | WD2M101 | Scr | |
|||
| 3364 | WE5M93 | Harness Sensors Asm | |
|||
| 3445 | WE2M214 | Screw Flat Head/ab | |
|||
| 9999 | WE25M53 | Hose Inlet Asm - Kit | |
