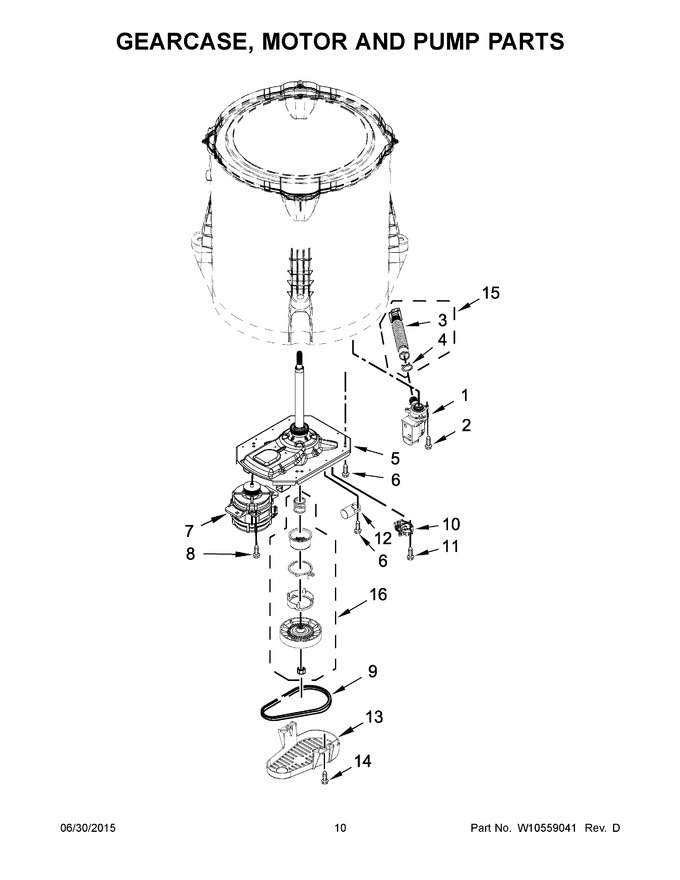

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10276397 | Pump Assembly, Drain | ||||
2 | WPW10004910 | Screw | ||||
3 | W10899966 | Hose, Inner Drain Assembly (Replaces:W10763078) | ||||
4 | WP285655 | Clamp, Hose (Replaces:8317496) | ||||
5 | W11159068 | Assembly, Gearcase (Replaces:W10521293) | ||||
6 | WPW10249633 | Screw | ||||
7 | WPW10490819 | Motor, Drive | ||||
8 | W10182109 | Screw (Replaces:W10094780) | ||||
9 | WPW10006384 | Belt, Drive | ||||
10 | W11212745 | Actuator, Shift (Replaces:W10389471) | ||||
11 | W11596033 | Screw (Replaces:9741052) | ||||
12 | W11395618 | Capacitor, Motor Run (Replaces:W10625046) | ||||
13 | WPW10427633 | Shield, Pulley Cover | ||||
14 | W11573574 | Screw (Replaces:357640) | ||||
15 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces:W10444123) | ||||
16 | W10721967 | Splutch Kit (60hz) |
