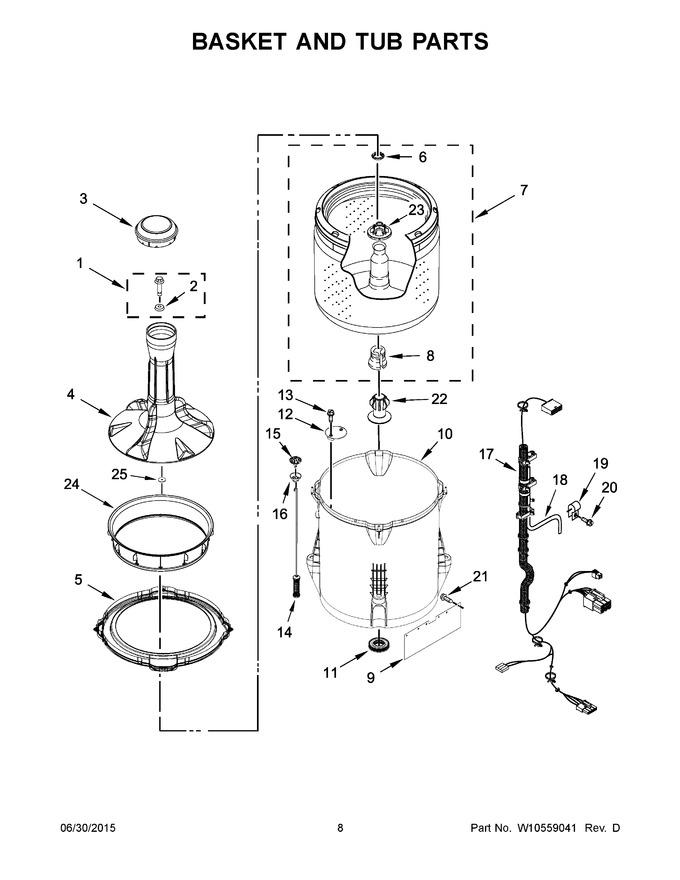

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10772621 | Screw And Washer (Replaces:W10003790) | ||||
2 | WP3949550 | Washer | ||||
3 | W11190827 | Cap, Agitator (Replaces:W10424292) | ||||
4 | W10772620 | Impeller (Replaces:W10424311) | ||||
5 | WPW10461196 | Ring, Tub | ||||
6 | WP21366 | Nut, Spanner | ||||
7 | W10738339 | Basket Assembly (Replaces:W10389330) | ||||
8 | W11084139 | Block, Basket Drive (Replaces:W10198148) | ||||
9 | W10339098 | Shield, Splash | ||||
10 | W10371566 | Tub (includes Tub Seal) (Replaces:W10238320) | ||||
11 | W10579816 | Seal, Tub (Replaces:W10424291) | ||||
12 | WPW10215093 | Filter, Drain Pump | ||||
13 | WP8533928 | Screw (stainless) | ||||
14 | W10780046 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Balls And Suspension Bushings) (Replaces:W10748950) | ||||
15 | W10583768 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) | ||||
16 | W10440729 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) (Replaces:W10256551) | ||||
17 | W10861643 | Harness, Lower (includes Pressure Hose & Cable Tie) (Replaces:W10472988) | ||||
18 | WP353244 | Hose, Pressure Switch (Replaces:W10531633) | ||||
19 | W10005430 | Clamp, Cable | ||||
20 | WPW10109200 | Screw (Replaces:8533943) | ||||
21 | W10429200 | Retainer, Push-in | ||||
22 | W11084129 | Collar, Alignment (Replaces:W10424298) | ||||
23 | W10461124 | Ring, Labryinth (item Not Included With Basket Assembly) | ||||
24 | W11222084 | Adapter, Balance Ring (Replaces:W10424289) | ||||
25 | W10832827 | Rubber Washer, Impeller (Replaces:W10755559) |
