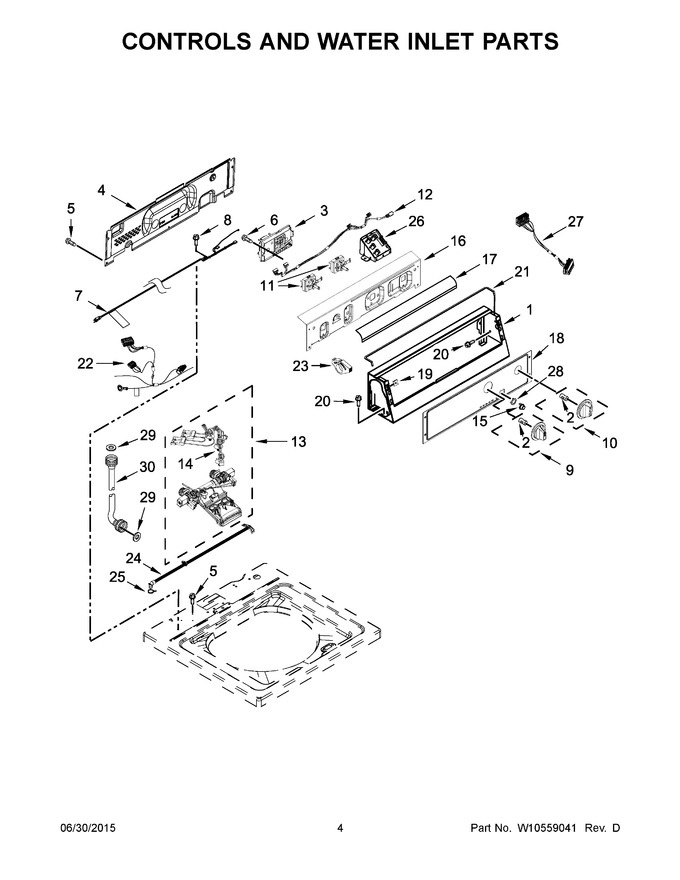

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10461094 | Console | ||||
2 | W10140928 | Clip, Knob | ||||
3 | W10860464 | Control Unit Assembly, Machine & Motor (Replaces:W10571743) | ||||
4 | WPW10461159 | Panel, Console Rear Cover | ||||
5 | WP489069 | Screw (Replaces:1157158) | ||||
6 | WP90767 | Screw | ||||
7 | W10482500 | Cord, Power | ||||
8 | W10846509 | Screw (Replaces:3400076) | ||||
9 | W10461101 | Assembly, Timer Knob (gray) | ||||
10 | W10461100 | Knob & Bumper Assembly (gray) | ||||
11 | WPW10285512 | Temperature Control | ||||
12 | W10291184 | Harness, Upper E-star | ||||
13 | WPW10486031 | Inlet Assembly, Water | ||||
14 | W10472990 | Harness, Valve | ||||
15 | WPW10461117 | Push Button, Start | ||||
16 | W10461067 | Back Bracket, Control Panel | ||||
17 | W10133515 | Deflector Switch Assembly | ||||
18 | W10461106 | Fascia | ||||
19 | WPW10131123 | Nut, "u | ||||
20 | WP3390631 | Screw | ||||
21 | WPW10157932 | Seal, Foam | ||||
22 | W10480947 | Harness, Led | ||||
23 | W10348582 | Clamp, Hose | ||||
24 | WPW10461189 | Assembly, Hose | ||||
25 | W10117298 | Clamp, Hose | ||||
26 | WPW10491734 | Interface, Coin Slide | ||||
27 | W11296297 | Jumper, Coin Slide Interface (Replaces:W10514456) | ||||
28 | W10510149 | Bezel - Pts | ||||
29 | WP16123 | Washer, Inlet Hose (Replaces:W10242307) | ||||
30 | W10575888 | Hose, Water Inlet (hot) (Replaces:W10458855) | ||||
30A | W10575888 | Hose, Water Inlet (cold) (Replaces:W10458856) |
