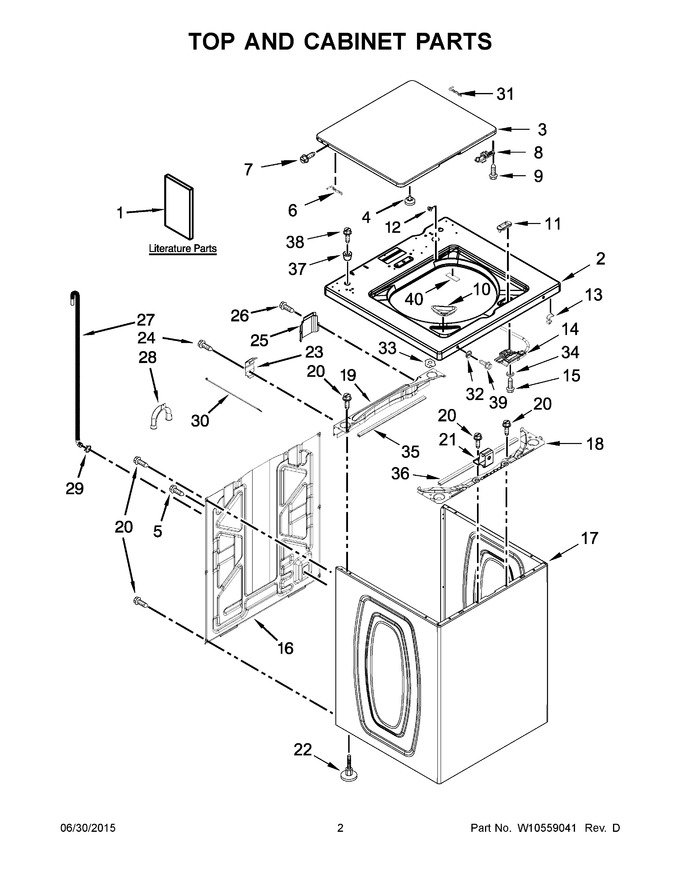

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10474263 | Installation Instructions |  |
|||
| 2 | W10461169 | Top (white) | |
|||
| 3 | WPW10338625 | Assembly, Lid And Bumper (white) (Replaces:W10251302) | |
|||
| 4 | W11252488 | Bumper, Lid (Replaces:W10525268) | |
|||
| 5 | WP9740848 | Screw | |
|||
| 6 | WP91770 | Hinge, Lid (left Hand) | |
|||
| 7 | WPW10119828 | Screw (Replaces:W10119872) | |
|||
| 8 | WPW10240513 | Strike, Lid Lock (white) | |
|||
| 9 | WPW10273971 | Screw | |
|||
| 10 | W10515627 | Dispenser, Bleach | |
|||
| 11 | WPW10392041 | Bezel, Lid Lock (white) | |
|||
| 12 | WP21258 | Bearing, Lid Hinge | |
|||
| 13 | WP90016 | Clip, Harness | |
|||
| 14 | WPW10482836 | Latch, Lid Lock Assembly | |
|||
| 15 | W10588613 | Screw | |
|||
| 16 | WPW10250884 | Panel, Rear | |
|||
| 17 | W10596395 | Cabinet (white) (Replaces:W10478060) | |
|||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces:W10215098) | |
|||
| 19 | W11089573 | Brace, Cabinet Top - Rear (Replaces:W10512626) | |
|||
| 20 | WP489069 | Screw (Replaces:1157158) | |
|||
| 21 | W10461182 | Lock, Top | |
|||
| 22 | WPW10687506 | Foot, Leveling (Replaces:W10397994) | |
|||
| 23 | W10461176 | Hinge, Top | |
|||
| 24 | WP489128 | Screw (Replaces:W10142728) | |
|||
| 25 | W10461180 | Cover, Harness | |
|||
| 26 | W10846509 | Screw (Replaces:3400076) | |
|||
| 27 | W11244231 | Hose, Outer Drain Assembly (Replaces:W10221546) | |
|||
| 28 | WPW10280024 | U-bend, Drain Hose | |
|||
| 29 | WP356138 | Clamp, Hose | |
|||
| 30 | WPW10339879 | Tie, Cable | |
|||
| 31 | WP54583 | Hinge, Lid (right Hand) | |
|||
| 32 | W10461181 | Bushing-top, Screw | |
|||
| 33 | WP90406 | Nut, Cage | |
|||
| 34 | W10318627 | O-ring | |
|||
| 35 | W10521454 | Brace-guard, Cabinet Rear Top | |
|||
| 36 | W10521453 | Brace-guard, Cabinet Front Top | |
|||
| 37 | 356674 | Cone, Wedge | |
|||
| 38 | 3353994 | Bolt | |
|||
| 39 | W11170603 | Screw (Replaces:W10486616) | |
|||
| 40 | W10684257 | Pad | |
|||
| 1A | W10531642 | Wiring Diagram | |
|||
| 1B | W10554748 | Tech Sheet | |
|||
| 1C | W10474315 | Energy Guide | |
|||
| 1D | 8316532 | Instructions, Coin Kit | |
