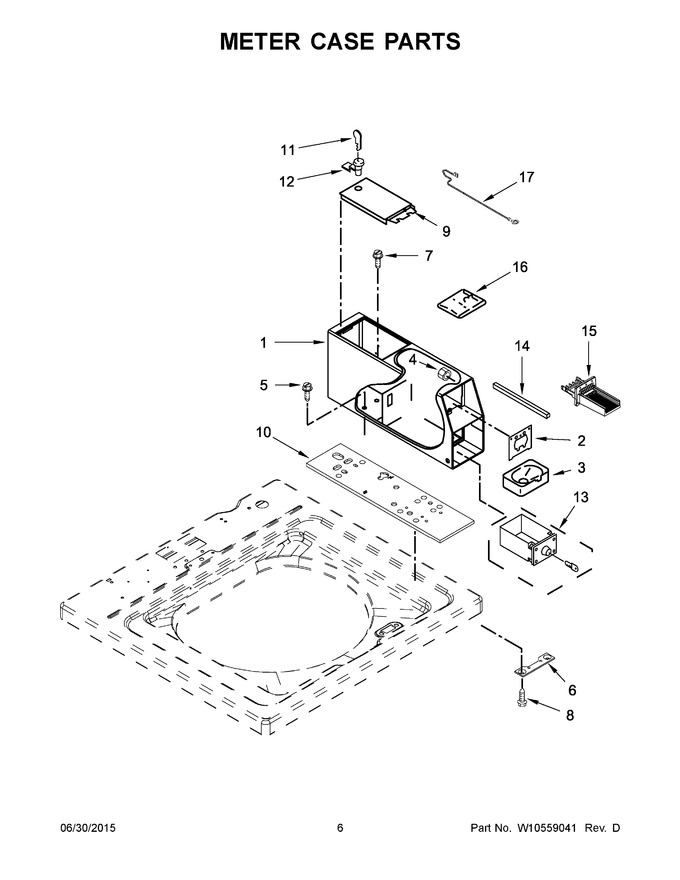

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10549814 | Meter Case |  |
|||
| 2 | 279950 | Plate, Adapter (Replaces:3954761) | |
|||
| 3 | WP385421 | Funnel, Coin | |
|||
| 4 | WP3400029 | Nut | |
|||
| 5 | 3349065 | Bolt | |
|||
| 6 | 3347825 | Plate, Mounting | |
|||
| 7 | WPW10139210 | Screw | |
|||
| 8 | W10841059 | Screw (Replaces:98445) | |
|||
| 9 | W11283272 | Assembly, Service Door (Replaces:3351136) | |
|||
| 10 | WP3954812 | Cushion, Meter Case | |
|||
| 11 | W11685800 | Key, Access Door (Replaces:W10114740) | |
|||
| 12 | W11315637 | Assembly, Cam & Security Lock (Replaces:8316526) | |
|||
| 13 | W11190039 | Money Box W/lock (Replaces:8316525) | |
|||
| 14 | WP8576635 | Bolt, Slide Mechanism (Replaces:8318517) | |
|||
| 15 | W11126319 | Coin Slide (vertical 8) (Replaces:W10547316) | |
|||
| 16 | 4396670 | Kit, Chute Decal (Replaces:8316524) | |
|||
| 17 | W10846503 | Jumper-ground, Coin Mechanism (Replaces:W10623854) | |
