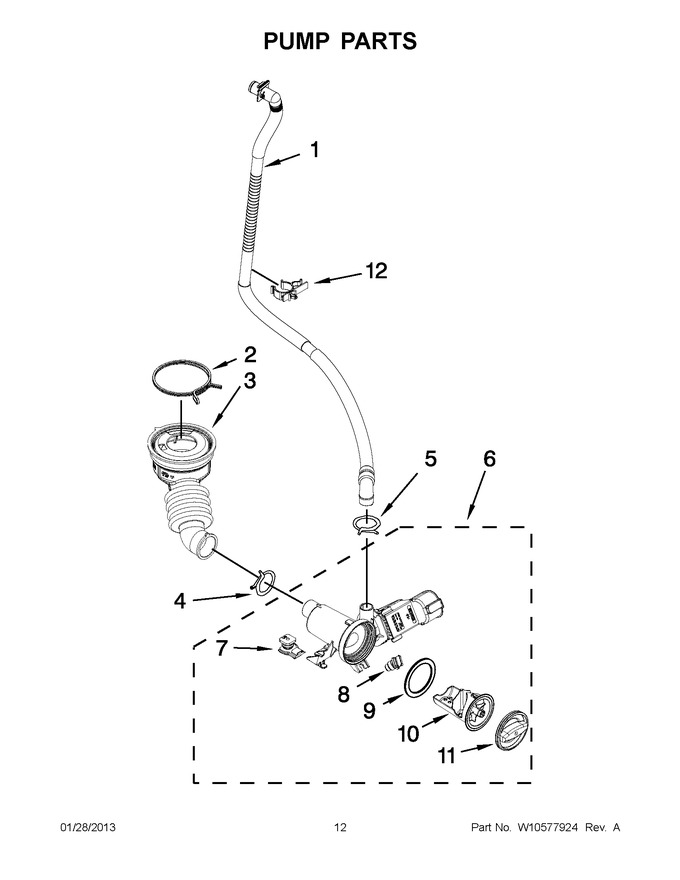

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10267642 | Drain Hose (internal) |  |
|||
| 3 | WPW10467168 | Hose, Tub To Pump (Replaces:W10241029) | |
|||
| 4 | W10273036 | Clamp, Hose | |
|||
| 5 | WP356138 | Clamp, Hose | |
|||
| 6 | WPW10391443 | Pump (complete) | |
|||
| 7 | W10391449 | Grommet, Damper (rear) | |
|||
| 8 | WPW10526202 | Grommet, Damper (front) (Replaces:8182816) | |
|||
| 9 | W10391451 | Seal, Filter Cap | |
|||
| 10 | W10391445 | Filter, Pump | |
|||
| 11 | W10391446 | Cap, Filter | |
|||
| 12 | W10441646 | Retainer, Drain Hose | |
