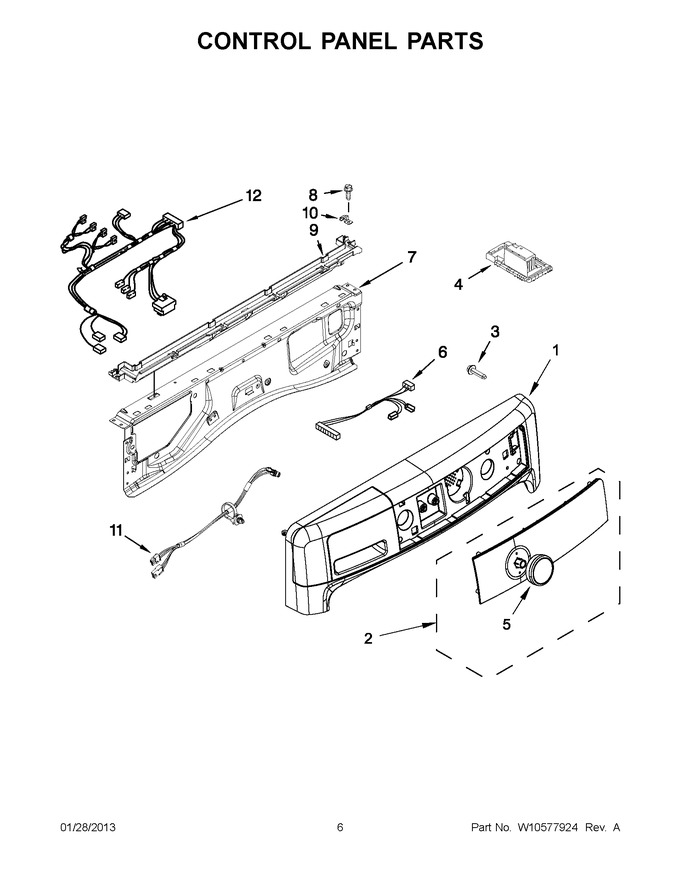

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10469293 | Console Assembly (granite) |  |
|||
| W10469292 | Console Assembly (white) | |
||||
| 2 | W10391562 | Iml Assembly (white) | |
|||
| W10468515 | Iml Assembly (granite) | |
||||
| 3 | W10489172 | Screw | |
|||
| 4 | WPW10701569 | Control Unit, Central (Replaces:W10565866) | |
|||
| 5 | W10853910 | Knob, Control (white) (Replaces:W10519048) | |
|||
| 6 | WPW10486216 | Harness, Ui Jumper | |
|||
| 7 | W10208197 | Bracket, Console | |
|||
| 8 | WP489464 | Screw (Replaces:W10142290) | |
|||
| 9 | WPW10653575 | Channel, Water (Replaces:W10317570) | |
|||
| 10 | W10317566 | Clip, Spring | |
|||
| 11 | WPW10442440 | Harness, Ui | |
|||
| 12 | W10422436 | Harness, Main (upper) | |
