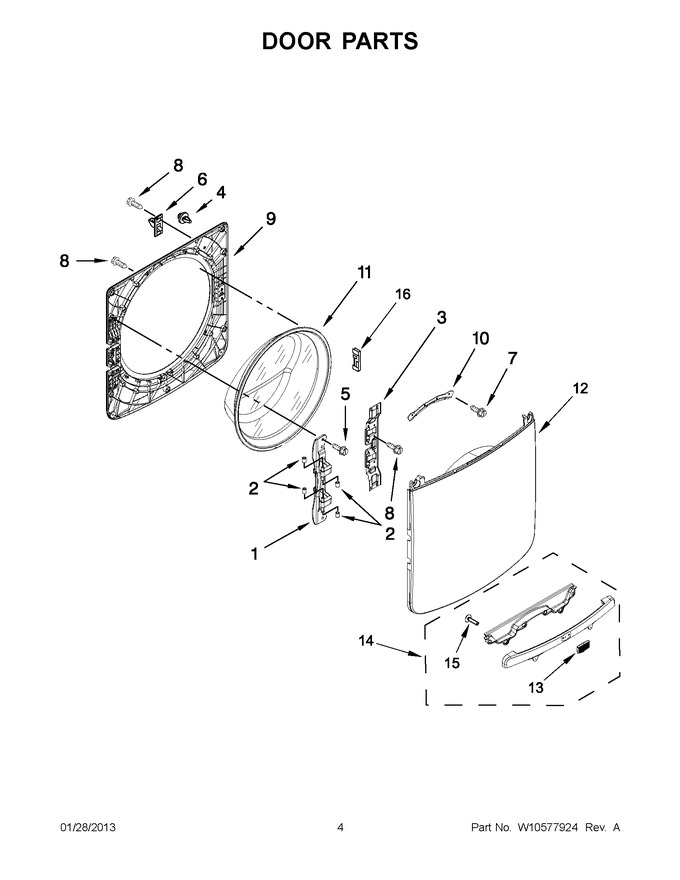

Diagram # Part Number Description Series Find a Video
1 WPW10208415 Hinge Base Find a Video
2 WPW10208398 Cap, Hinge Find a Video
3 W10839743 Plate, Hinge Retainer   (Replaces:W10312805) Find a Video
4 8572266 Bumper, Door Find a Video
5 WPW10288126 Screw Find a Video
6 WPW10488048 Strike, Door Find a Video
7 W11230114 Screw   (Replaces:8540513) Find a Video
8 WP8534022 Screw Find a Video
9 W11316776 Frame, Door Back Support   (Replaces:W10272396) Find a Video
10 W10295703 Clamp, Glass   (Replaces:W10003440) Find a Video
11 WPW10208263 Glass, Door Find a Video
12 WPW10424239 Door, Outer Assembly Find a Video
13 WPW10492808 Badge, Maytag   (Replaces:W10424964) Find a Video
14 W10466621 Handle, Door Find a Video
15 W10850046 Screw   (Replaces:9742177) Find a Video
16 W10128586 Clamp, Glass Support   (Replaces:W10003430) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
