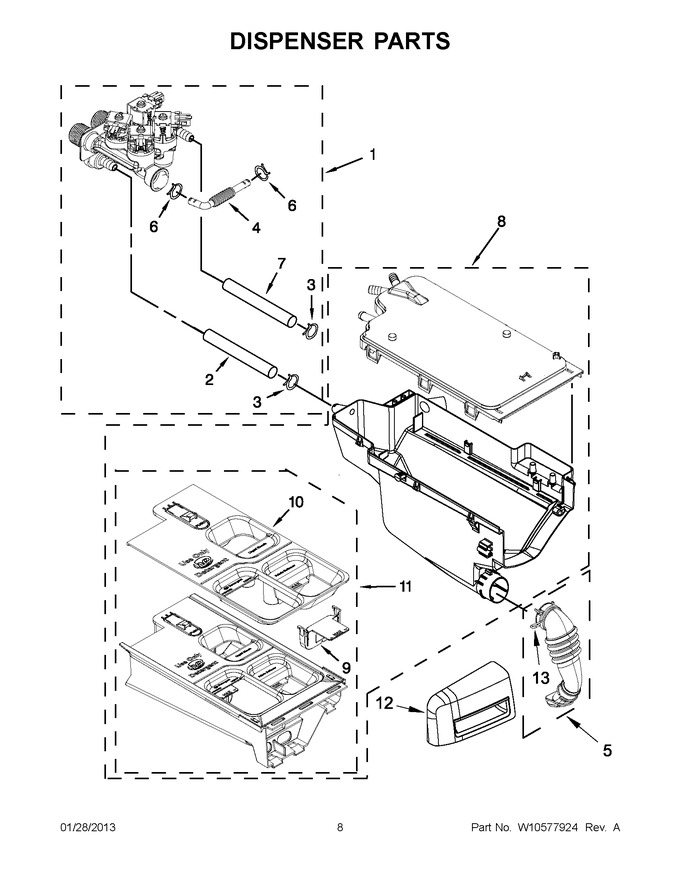

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10435242 | Valve, Inlet Assembly |  |
|||
| 2 | WPW10577770 | Hose, Grey (Replaces:W10435239) | |
|||
| 3 | 9724997 | Clamp, Hose | |
|||
| 4 | W10435238 | Hose, Steam | |
|||
| 5 | WPW10239966 | Hose, Dispenser To Bellow | |
|||
| 6 | W10096852 | Clamp, Hose | |
|||
| 7 | WPW10577787 | Hose, Black (Replaces:W10435240) | |
|||
| 8 | W10575334 | Housing, Dispenser Assembly (includes Items 2, 3 & 7) (Replaces:W10365881) | |
|||
| 9 | W11084830 | Separator, With Selection Slider (Replaces:W10411442) | |
|||
| 10 | WPW10365887 | Siphon, Bleach/softener | |
|||
| 11 | WPW10365885 | Drawer, Detergent (complete) | |
|||
| 12 | W10468535 | Handle, Drawer (granite) | |
|||
| W10468534 | Handle, Drawer (white) | |
||||
| 13 | W10239910 | Clamp, Hose | |
