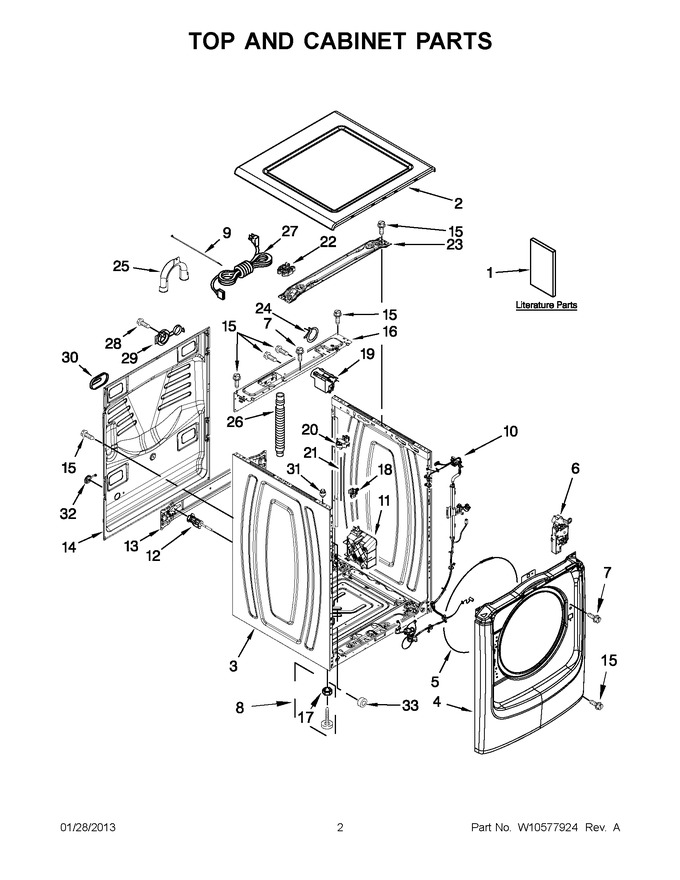

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10441092 | Energy Guide |  |
|||
| W10441130 | Owners Manual | |
||||
| W10441081 | Tech Sheet | |
||||
| W10441093 | Installation Instructions | |
||||
| 2 | WPW10304145 | Top (granite) | |
|||
| WPW10208373 | Top (white) | |
||||
| 3 | W10441108 | Cabinet (granite) | |
|||
| W11166595 | Cabinet (white) (Replaces:W10441110) | |
||||
| 4 | WPW10441121 | Panel, Front (white) | |
|||
| WPW10441119 | Panel, Front (granite) | |
||||
| 5 | W11266654 | Retainer, Bellow To Front Panel (Replaces:W10237503) | |
|||
| 6 | WP8183270 | Lock,door (Replaces:8183197) | |
|||
| 7 | WP8540282 | Screw | |
|||
| 8 | W10888529 | Leveling Leg Assembly (Replaces:W10073890) | |
|||
| 9 | WPW10339879 | Tie, Cable | |
|||
| 10 | W10498561 | Harness, Wiring (lower Main) | |
|||
| 11 | WPW10374126 | Motor Control Unit | |
|||
| 12 | W10763470 | Bolt, Shipping (lower) (Replaces:W10538711) | |
|||
| 13 | W10237498 | Brace, Transport | |
|||
| 14 | W10386103 | Panel, Rear (Replaces:W10532497) | |
|||
| 15 | W11573574 | Screw (Replaces:357640) | |
|||
| 16 | WPW10467483 | Brace, Rear | |
|||
| 17 | WP3359452 | Nut, Hex | |
|||
| 18 | WPW10181028 | Clip, Pressure Switch Hose | |
|||
| 19 | WPW10367632 | Filter, Interference | |
|||
| 20 | WPW10448876 | Sensor, Pressure | |
|||
| 21 | W11044559 | Hose, Pressure Switch (Replaces:W10251962) | |
|||
| 22 | W10245452 | Retainer, Spring | |
|||
| 23 | W10467484 | Brace, Top | |
|||
| 24 | WP356138 | Clamp, Hose | |
|||
| 25 | WPW10280024 | U-bend, Drain Hose | |
|||
| 26 | W11281268 | Hose, Drain (external) (Replaces:W10267638) | |
|||
| 27 | W11035353 | Power Cord (Replaces:W10434975) | |
|||
| 28 | WP3351614 | Screw | |
|||
| 29 | W10854051 | Cover, Power Cord -transport (Replaces:W10275820) | |
|||
| 30 | WP8540268 | Cover, Transport (Replaces:8182700) | |
|||
| 31 | W10208380 | Screw, Bush Assembly | |
|||
| 32 | W10304004 | Cover, Power Cord | |
|||
| 33 | W10323182 | Spacer, Front Panel | |
