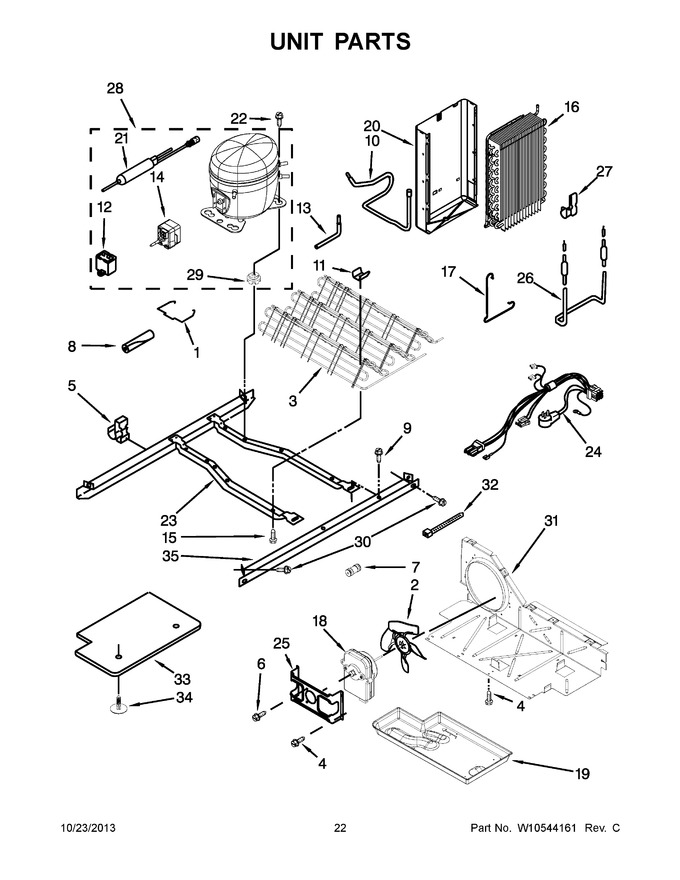

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10204187 | Strap, Bale |  |
|||
| 2 | W10156818 | Blade, Fan (Replaces:12825802) | |
|||
| 3 | 2324712 | Condenser Assembly | |
|||
| 4 | WP489464 | Screw | |
|||
| 5 | W10812039 | Clip, Wire (Replaces:2326941) | |
|||
| 6 | WP8533993 | Screw | |
|||
| 7 | WP2300868 | Connector, Union (Replaces:W10271541) | |
|||
| 8 | 2162499 | Sleeve, Pressure Switch Hose (Replaces:2161302) | |
|||
| 9 | WP489427 | Screw | |
|||
| 10 | WP2205765 | Tube, Suction | |
|||
| 11 | W10683556 | Clip, Condenser (Replaces:2311725) | |
|||
| 12 | WPW10662129 | Capacitor (Replaces:2264017) | |
|||
| 13 | W10858105 | Tube, Process (Replaces:2325479) | |
|||
| 14 | WPW10194431 | Start Device, Combination (start Relay And Overload) | |
|||
| 15 | W10651374 | Screw (Replaces:8281232) | |
|||
| 16 | WP2188823 | Assembly, Evaporator | |
|||
| 17 | WP2161324 | Clip, Defrost Heater | |
|||
| 18 | WP2188874 | Motor, Condenser | |
|||
| 19 | WPW10614158 | Tray, Evaporator (Replaces:1105523) | |
|||
| 20 | W10194475 | Heat Shield And Drain Pan | |
|||
| 21 | WPW10143759 | Drier | |
|||
| 22 | W11417341 | Screw (Replaces:W10476309) | |
|||
| 23 | W10196321 | Frame, Unit Mounting | |
|||
| 24 | W10805739 | Unit, Harness (Replaces:W10417928) | |
|||
| 25 | WP2181929 | Bracket, Fan Motor | |
|||
| 26 | WP2323198 | Heater, Defrost (Replaces:2188175) | |
|||
| 27 | WP2161324 | Clip, Defrost Heater | |
|||
| 28 | WPW10463858 | Compressor (Replaces:W10405532) | |
|||
| 29 | WPW10169124 | Grommet (Replaces:10835903) | |
|||
| 30 | 489340 | Bolt | |
|||
| 31 | W10332806 | Air Baffle | |
|||
| 32 | WPW10339879 | Tie, Wire (Replaces:2263990) | |
|||
| 33 | W10466698 | Unit Cover, Bottom | |
|||
| 34 | 489396 | Clip | |
|||
| 35 | W10196313 | Unit Mounting Rail | |
|||
| NI | 978028 | Valve, Access | |
|||
| 978029 | Valve, Access | |
||||
| 978030 | Valve, Access Ÿ``) | |
||||
| 876764 | Valve, Access | |
||||
| N/P | Refrigerant Charge, 5.5 Oz (r-134a) | |
||||
| WP978025 | Valve, Access (Œ``) | |
||||
| 978026 | Valve, Access | |
||||
| 978027 | Valve, Access | |
