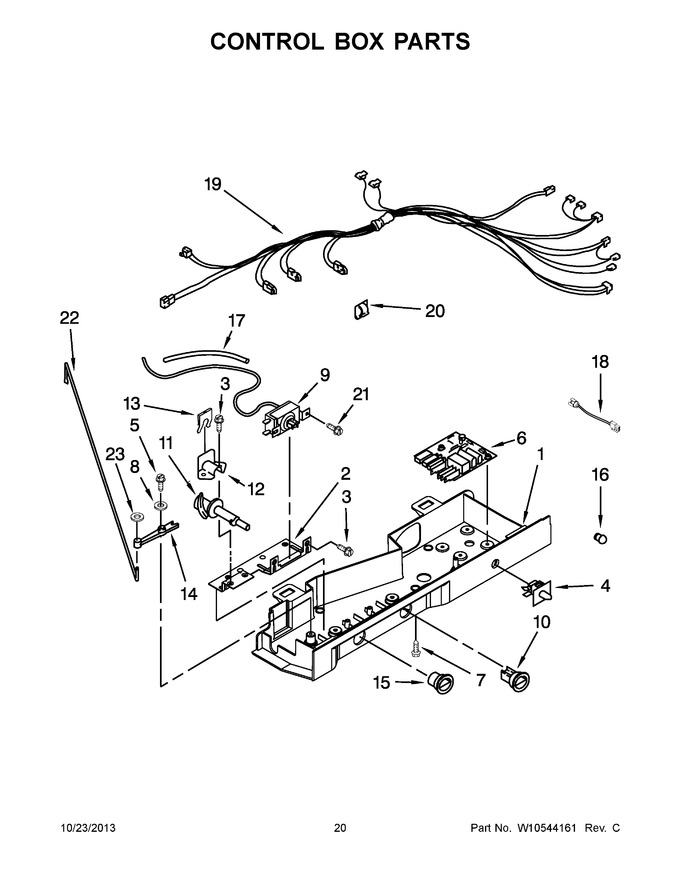

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10553058 | Control Box (Replaces:W10402260) |  |
|||
| 2 | 2311611 | Mounting Bracket | |
|||
| 3 | WP3196557 | Screw (Replaces:3196537) | |
|||
| 4 | WP2149705 | Switch, Light (Replaces:2219875) | |
|||
| 5 | 627068 | Screw | |
|||
| 6 | WPW10366605 | Adaptive Defrost Control | |
|||
| 7 | 489392 | Screw (Replaces:489398) | |
|||
| 8 | 489203 | Washer, Spring | |
|||
| 9 | WPW10583800 | Thermostat Assembly (Replaces:W10396166) | |
|||
| 10 | W10723843 | Knob, Thermostat (Replaces:2311614) | |
|||
| 11 | WP2182195 | Cam Assembly | |
|||
| 12 | 1110560 | Bearing Body | |
|||
| 13 | WP2196062 | Damper Control | |
|||
| 14 | W11256541 | Pivot Arm (Replaces:1110559) | |
|||
| 15 | 2311615 | Knob, Control | |
|||
| 16 | 2200096 | Lens, Light | |
|||
| 17 | WP2196003 | Tube Barrier, Thermostat (Replaces:2196001) | |
|||
| 18 | W10853646 | Led Light Assembly, (Replaces:2213462) | |
|||
| 19 | W10417924 | Control Box Harness | |
|||
| 20 | WP1115374 | Clip, Wire | |
|||
| 21 | WP965173 | Screw (Replaces:487869) | |
|||
| 22 | 2311631 | Connecting Rod | |
|||
| 23 | 489285 | Fastener, Push-on | |
