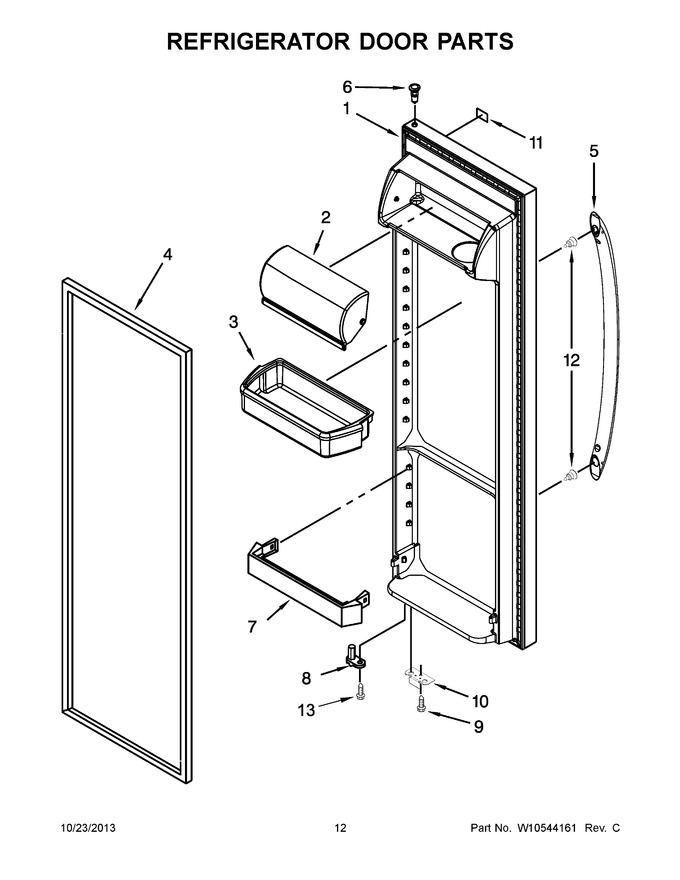

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | LW10430228 | Refrigerator Door (includes Item 4) (stainless) (Replaces:W10430228) | ||||
LW10407713 | Refrigerator Door (includes Item 4) (white) (Replaces:W10407713) | |||||
LW10407712 | Refrigerator Door (includes Item 4) (black) (Replaces:W10407712) | |||||
2 | WP2256101 | Door, Compartment | ||||
3 | WPW10321304 | Bin, Door | ||||
4 | WPW10136734 | Door Gasket, Magnetic (grey) (Replaces:2327163) | ||||
2159083 | Door Gasket, Magnetic (black) (Replaces:2309529) | |||||
2159075 | Door Gasket, Magnetic (beige) (Replaces:2309528) | |||||
5 | WPW10398788 | Handle (black) | ||||
W10848410 | Handle (white) (Replaces:W10357236) | |||||
W10899551 | Handle (stainless) (Replaces:W10356568) | |||||
6 | WP2182181 | Thimble | ||||
7 | WP2309941 | Trivet | ||||
8 | WP2182179 | Thimble, Cam (Replaces:2182178) | ||||
9 | WP489483 | Screw (Replaces:489420) | ||||
10 | WPW10219801 | Bracket, Door Stop (silver) | ||||
11 | WPW10511972 | Nameplate (grey) | ||||
WPW10511975 | Nameplate (white) | |||||
12 | WPW10661886 | Screw (Replaces:W10460893) | ||||
13 | WP3400012 | Screw |
