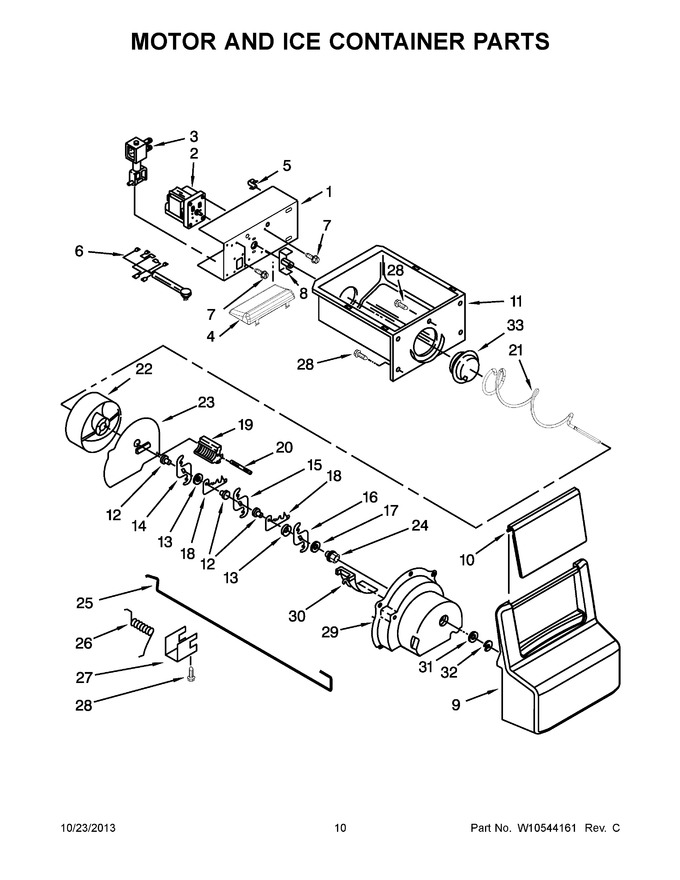

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10397980 | Bracket, Motor | ||||
2 | WPW10317991 | Motor, Dispenser | ||||
3 | WP2152713 | Solenoid Assembly | ||||
4 | WPW10515057 | Led Light Assembly Tapered Lens (Replaces:W10398007) | ||||
5 | WP1115374 | Clip, Wire | ||||
6 | W10417930 | Wiring Assembly, Ice Dispenser | ||||
7 | WP489399 | Screw | ||||
8 | WPW10169511 | Coupling, Motor | ||||
9 | W10189191 | Front Cover, Ice Container | ||||
10 | W10406980 | Ice Door | ||||
11 | WPW10670845 | Ice Container (Replaces:2196091) | ||||
12 | W10189661 | Spacer, Step | ||||
13 | WPW10189658 | Spacer, Flat | ||||
14 | W10278731 | Blade, Rotary A | ||||
15 | W10278732 | Blade, Rotary B | ||||
16 | W10278733 | Blade, Rotary C | ||||
17 | 489234 | Washer, Plain Upper Cam | ||||
18 | W10181990 | Blade, Fixed | ||||
19 | W10138203 | Block, Blade (Replaces:W10189708) | ||||
20 | 489229 | Pin, Roll | ||||
21 | WPW10295082 | Auger | ||||
22 | 4388736 | Drum (Replaces:2305377) | ||||
23 | W10852691 | Baffle, Floating (Replaces:2171682) | ||||
24 | WP1119018 | Nut, Bearing | ||||
25 | W11596045 | Control Arm (Replaces:2155231) | ||||
26 | 1119020 | Spring, Return | ||||
27 | 1119021 | Retainer Clip, Rod Dispenser | ||||
28 | WP488787 | Screw (Replaces:488886) | ||||
29 | WPW10185018 | Housing, Crusher | ||||
30 | WP1119017 | Deflecter, Ice | ||||
31 | 489234 | Washer, Plain Upper Cam | ||||
32 | WP489236 | Ring, Retainer | ||||
33 | W10749708 | Coupling, Ice Conveyor (Replaces:983668) | ||||
100 | WPW10558423 | Ice Container, Complete (Replaces:W10406981) |
