01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Ice Maker Parts


14 - Optional Parts

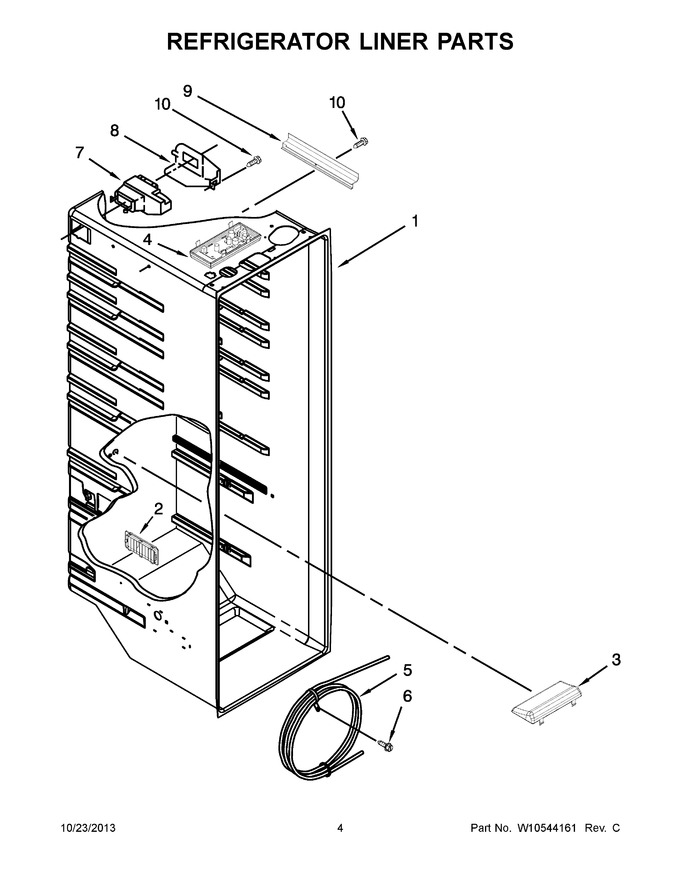

Diagram #	Part Number		Description	Series	Find a Video
1	N/P		Liner (not A Serviceable Part)
2	8201651		Louver   (Replaces:2257741)
3	WPW10515057		Led Light Assembly Tapered Lens   (Replaces:W10398007)
4	WPW10515058		Led Light Assembly Flat Lens   (Replaces:W10522611)
5	WPW10276792		Reservoir
6	798639		Screw   (Replaces:488280)
7	WPW10151374		Air Diffuser Assembly
8	2152019		Cover, Air Diffuser
9	W10252495		Cover, Wiring
10	W10759522		Screw   (Replaces:486298)
