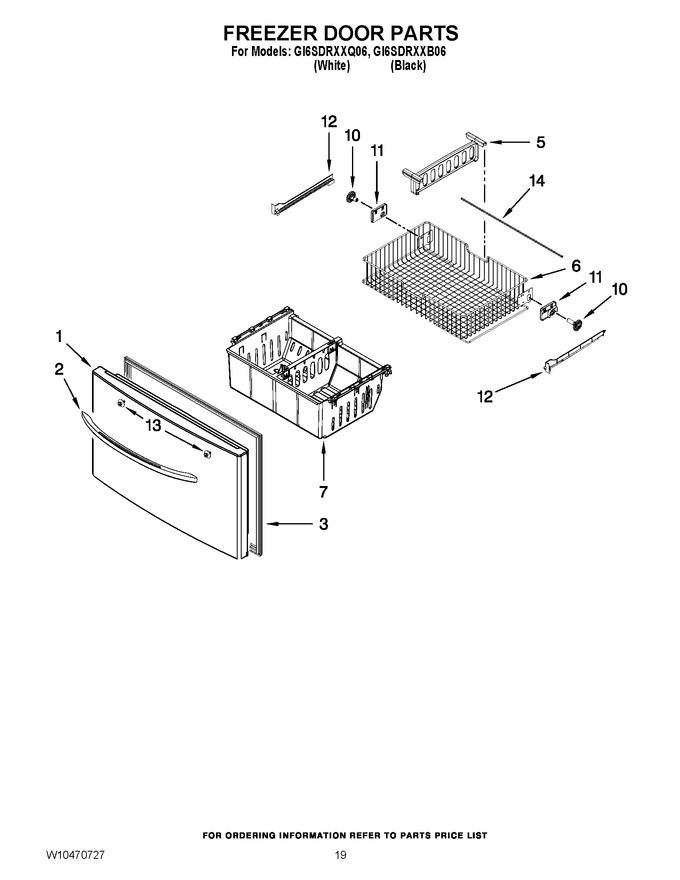

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 12977863WQ | Freezer Door (white) (Replaces:12977863W) | ||||
12977863BQ | Freezer Door (black) (Replaces:12977863B) | |||||
2 | WPW10223023K | Handle, Door (black) (Replaces:W10223023) | ||||
WPW10223022K | Handle, Door (white) (Replaces:W10223022) | |||||
3 | WPW10436253 | Gasket, Door (black) (Replaces:W10164044) | ||||
WPW10443321 | Gasket, Door (white/apollo Grey) (Replaces:W10164043) | |||||
5 | W10146439 | Divider, Upper Basket | ||||
6 | WPW10348249 | Basket, Upper | ||||
7 | WPW10293682 | Bin, Lower | ||||
10 | WPW10474716 | Gear Spur (right) (Replaces:W10158749) | ||||
WPW10474715 | Gear Spur (left) (Replaces:W10146446) | |||||
11 | W10348259 | Gear Mount (left) | ||||
W10348260 | Gear Mount (right) | |||||
12 | W11489993 | Rack (left) (Replaces:W10284694) | ||||
W11489994 | Rack (right) (Replaces:W10284695) | |||||
13 | WPW10288153 | Screw, Handle (shoulder) | ||||
14 | W11173556 | Shaft, Rack (Replaces:12812904WD) |
