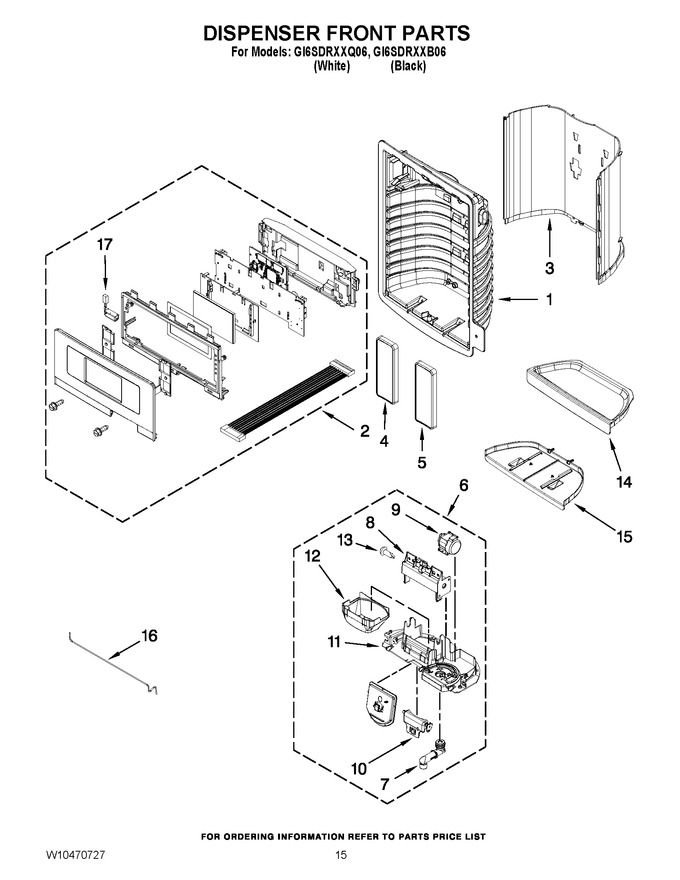

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |  |
|||
| 2 | W11184112 | Ui Assembly (Replaces:W10337911) | |
|||
| 3 | W11045975 | False, Wall, Dispenser (white) (Replaces:W10215699) | |
|||
| W11045976 | False, Wall, Dispenser (black) (Replaces:W10233560) | |
||||
| 4 | W10368728 | Pad, Ice (white) (Replaces:W10334795) | |
|||
| W10368729 | Pad, Ice (black) (Replaces:W10334798) | |
||||
| 5 | W10368728 | Pad, Water (white) (Replaces:W10334819) | |
|||
| W10368729 | Pad, Water (black) (Replaces:W10334822) | |
||||
| 6 | WPW10353552 | Separator Assy. | |
|||
| 7 | W11227371 | Spigot (Replaces:2316647) | |
|||
| 8 | W10174827 | Bracket, Ice Door | |
|||
| 9 | WPW10205979 | Motor, Ice Door | |
|||
| 10 | WPW10346124 | Support, Ice Door | |
|||
| 11 | W10278987 | Separator | |
|||
| 12 | WPW10435760 | Guide, Ice (Replaces:W10339578) | |
|||
| 13 | W10174818 | Clip-motor Cplng. | |
|||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces:W10267869) | |
|||
| W10267870 | Tray, Dispenser (black) | |
||||
| 15 | W10267861 | Slide Tray, Dispenser (black) | |
|||
| W10267860 | Slide Tray, Dispenser (white/apollo Grey) | |
||||
| 16 | WPW10296451 | Tube, Water | |
|||
| 17 | W11290115 | Led (Replaces:W10238083) | |
