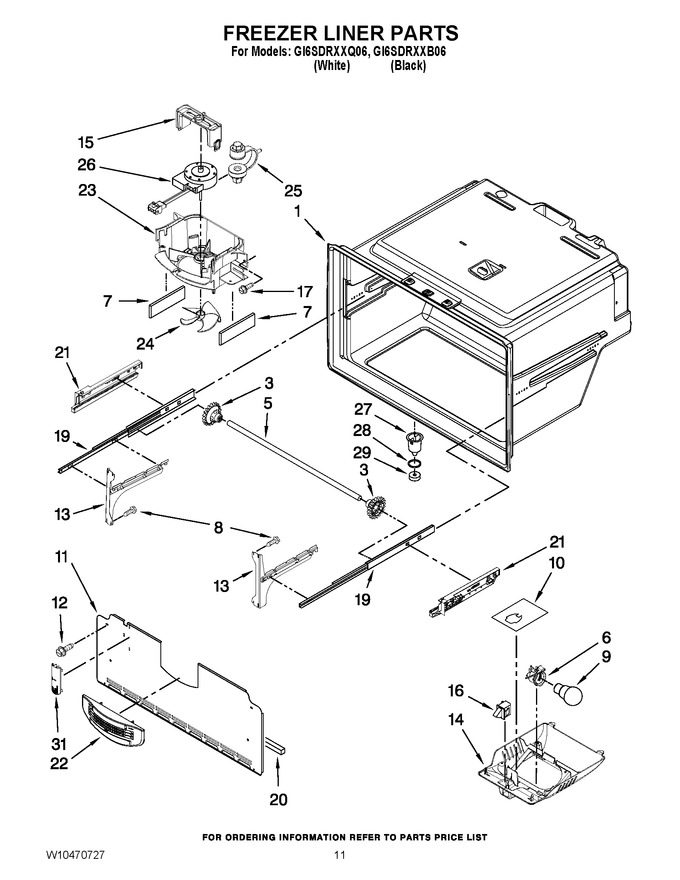

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |  |
|||
| 3 | 12002497 | Gear (includes Both) | |
|||
| 5 | W11028221 | Shaft, Rack (Replaces:12812903WD) | |
|||
| 6 | W11447232 | Socket, Light (Replaces:12570701) | |
|||
| 7 | W10856123 | Gasket, Foam (Replaces:A3189392) | |
|||
| 8 | WP98165 | Screw, Bracket (Replaces:12990521) | |
|||
| 9 | 8009 | Bulb, Light (Replaces:2255743) | |
|||
| 10 | W11469652 | Housing, Foil (Replaces:W10277466) | |
|||
| 11 | W10308421 | Cover, Evap | |
|||
| 12 | 67006425 | Screw (Replaces:12990511) | |
|||
| 13 | WPW10330995 | Bracket, Door Slide (right) | |
|||
| WPW10330994 | Bracket, Door Slide (left) | |
||||
| 14 | W11434460 | Module, Freezer Light (Replaces:W10315248) | |
|||
| 15 | W11712696 | Clip, Fan Motor (Replaces:12956601) | |
|||
| 16 | W11445850 | Switch, Rocker (Replaces:12466111SP) | |
|||
| 17 | WP98165 | Screw, Fan Shroud To Basket (Replaces:12990504) | |
|||
| 19 | W11658402 | Slide, Drawer (2) (Replaces:W10120018) | |
|||
| 20 | W11451451 | Gasket, Foam (Replaces:A3189397) | |
|||
| 21 | WPW10284682 | Adapter (left) | |
|||
| WPW10284683 | Adapter (right) | |
||||
| 22 | W11176847 | Grille, Air (Replaces:12959901) | |
|||
| 23 | W11700329 | Shroud, Evap Fan (Replaces:12951401) | |
|||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces:12986101) | |
|||
| 25 | W11676465 | Grommet, Fan Motor (2) (Replaces:12951101) | |
|||
| 26 | W11334745 | Motor, Evaporator Fan (Replaces:W10276647) | |
|||
| 27 | W10815413 | Funnel, Drain (Replaces:D7753903) | |
|||
| 28 | WPM0500703 | Seal, O Ring | |
|||
| 29 | WPB8381501 | Gasket, Drain Tube | |
|||
| 31 | WP67003924 | Cover, Thermistor (Replaces:12815301) | |
