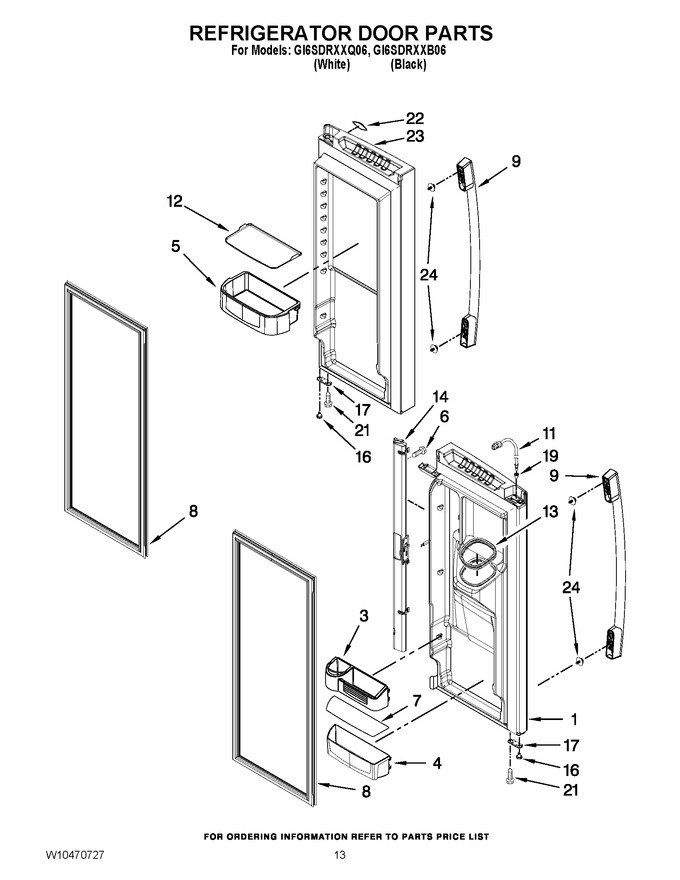

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 13107315W | Door, Left (white) | ||||
13107315BQ | Door, Left (black) (Replaces:13107315B) | |||||
3 | WPW10323808 | Bucket, Upper | ||||
4 | WPW10212139 | Bucket, Small | ||||
5 | WPW10451501 | Bucket, Medium (Replaces:W10157872) | ||||
6 | W11311945 | Screw (Replaces:12990204) | ||||
7 | W10243414 | Gripper, Small | ||||
8 | W11396037 | Gasket, Door (white) (Replaces:W10163896) | ||||
W11378944 | Gasket, Door (black) (Replaces:W10163898) | |||||
9 | W11351146 | Handle, Door (black) (Replaces:W10222985) | ||||
WPW10222984K | Handle, Door (white) (Replaces:W10222984) | |||||
11 | WPW10296451 | Waterline, Door | ||||
12 | W10450033 | Gripper, Gallon (Replaces:W10138061) | ||||
13 | WPW10287601 | Seal, Ice Chute | ||||
14 | 12722815B | Mullion, Door (black) | ||||
WP12722815W | Mullion, Door (white) | |||||
16 | WP67003638 | Closure, Door (white) (Replaces:12028505W) | ||||
WP67003639 | Closure, Door (black) (Replaces:12028505B) | |||||
17 | WP67007011 | Stop, Door (black) (Replaces:12968202B) | ||||
12968202W | Stop, Door (white) | |||||
19 | 12996601 | Clip, Bushing Wire (left Door) | ||||
21 | WP98165 | Screw (Replaces:12990521) | ||||
22 | WP2220214 | Nameplate | ||||
23 | 13107316BQ | Door, Right (black) (Replaces:13107316B) | ||||
13107316WQ | Door, Right (white) (Replaces:13107316W) | |||||
24 | WPW10288153 | Screw, Handle (shoulder) |
