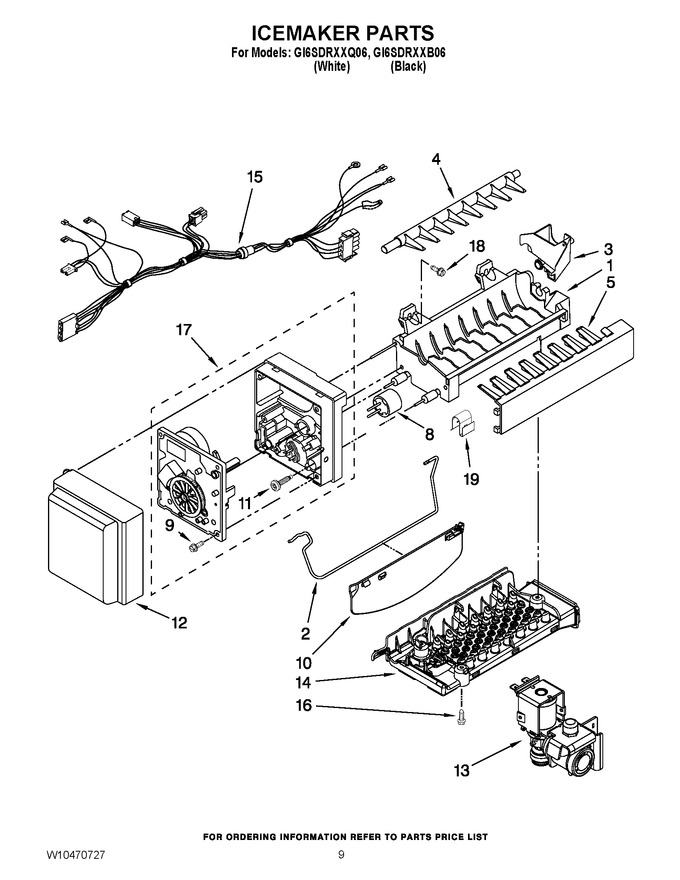

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Mold & Heater Assembly (also Order 542638 Grease) |  |
|||
| 2 | WPW10378254 | Arm, Shutoff | |
|||
| 3 | W10377998 | Cup, Fill | |
|||
| 4 | W10318914 | Ejector | |
|||
| 5 | WPW10122563 | Ice Stripper | |
|||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces:W10290336) | |
|||
| 9 | W10001240 | Screw (3) | |
|||
| 10 | WPW10351019 | Extension, Shutoff Arm | |
|||
| 11 | 8533917 | Screw (2) | |
|||
| 12 | W10460383 | Cover | |
|||
| 13 | WPW10498990 | Valve, Single (Replaces:W10342318) | |
|||
| 14 | WPW10312691 | Impinger Assy. | |
|||
| 15 | W11029433 | Harness, Icemaker (Replaces:W10404016) | |
|||
| 16 | 67006425 | Screw, Impinger (Replaces:12990511) | |
|||
| 17 | W10377147 | Module Assembly | |
|||
| 18 | W10001240 | Screw (3) | |
|||
| 19 | WP628379 | Clip | |
|||
| 100 | W10882923 | Icemaker Assembly (Replaces:W10377151) | |
