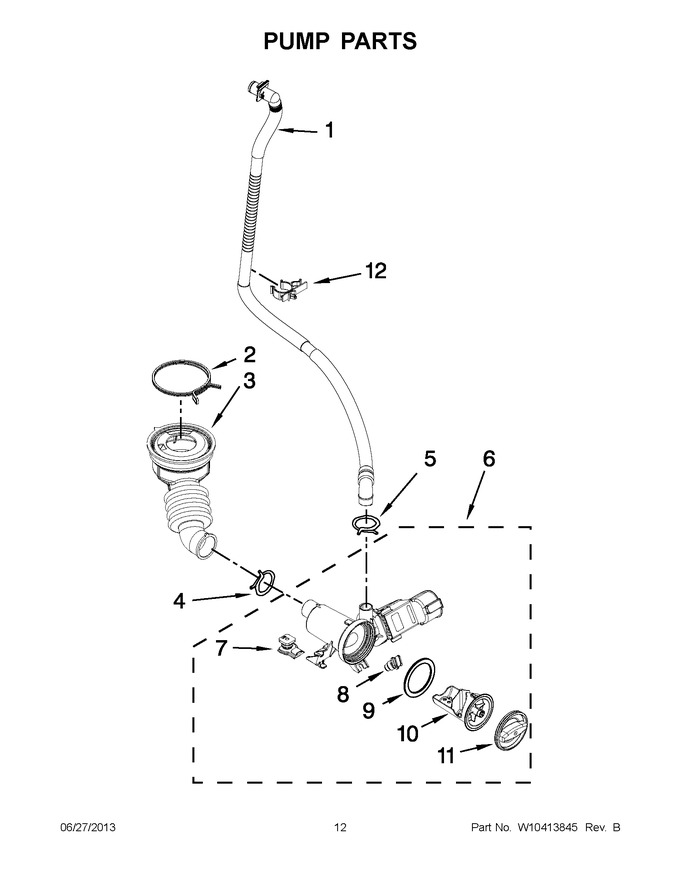

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10267642 | Drain Hose (internal) |  |
|||
| 2 | WP696392 | Clamp, Hose (Replaces:8181734) | |
|||
| 3 | WPW10467168 | Hose, Tub To Pump | |
|||
| 4 | W10273036 | Clamp, Hose | |
|||
| 5 | WP356138 | Clamp, Hose | |
|||
| 6 | WPW10241025 | Pump (complete) | |
|||
| 7 | W10338326 | Grommet, Damper (rear) | |
|||
| 8 | WPW10526202 | Grommet, Damper (front) (Replaces:8182816) | |
|||
| 9 | WP8181736 | Seal, Filter Cap | |
|||
| 10 | W10241027 | Filter, Pump | |
|||
| 11 | W10338322 | Cap, Filter | |
|||
| 12 | W10441646 | Retainer, Drain Hose | |
