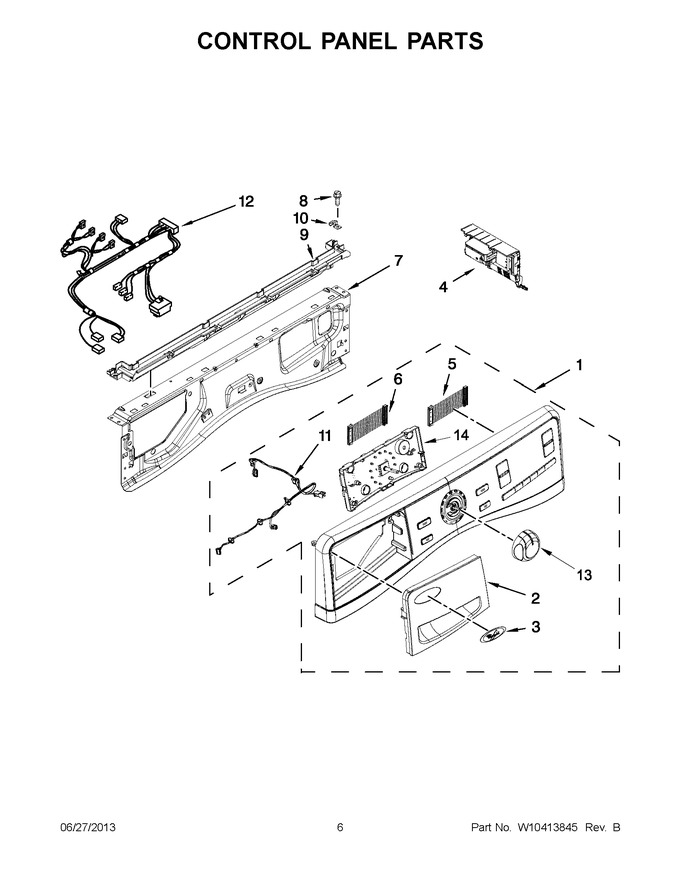

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10388437 | Console Asssembly (silver) | ||||
W10388426 | Console Asssembly (white) | |||||
W10388439 | Console Asssembly (red) | |||||
2 | W10839403 | Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (white) (Replaces:W10311731) | ||||
W10327028 | Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (silver) | |||||
W10316353 | Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) (red) | |||||
3 | W10854980 | Badge (Replaces:W10117943) | ||||
4 | W10427967 | Control Unit, Central | ||||
5 | W10267937 | Harness, Jumper | ||||
6 | W10267938 | Harness, Jumper Ui | ||||
7 | W10208197 | Bracket, Console | ||||
8 | WP489464 | Screw (Replaces:W10142290) | ||||
9 | WPW10653575 | Channel, Water (Replaces:W10317570) | ||||
10 | W10317566 | Clip, Spring | ||||
11 | W10271989 | Harness, Main Ui | ||||
12 | WPW10271979 | Harness, Wiring (upper Main) | ||||
13 | WPW10251394 | Assembly, Control Knob (chrome) | ||||
14 | W10604640 | Ui, Center (includes Knob) (Replaces:W10455538) |
