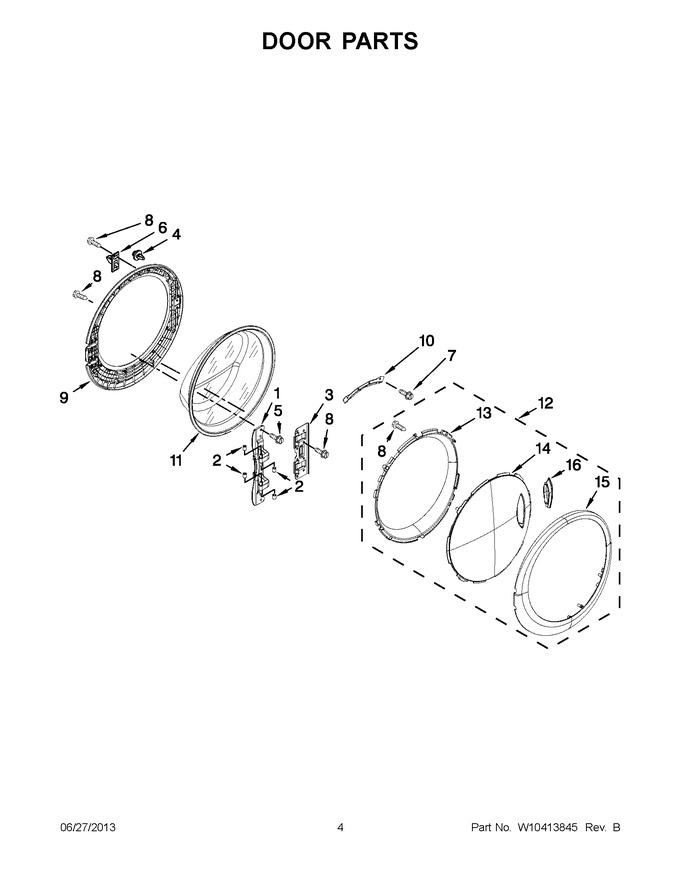

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10208415 | Hinge, Base | ||||
2 | WPW10208398 | Cap, Hinge | ||||
3 | WPW10208419 | Plate, Hinge Retainer | ||||
4 | 8572266 | Bumper, Door | ||||
5 | WPW10288126 | Screw | ||||
6 | WPW10488048 | Strike, Door | ||||
7 | W11230114 | Screw (Replaces:8540513) | ||||
8 | WP8534022 | Screw | ||||
9 | WPW10208275 | Frame, Door Back Support | ||||
10 | W10295703 | Clamp, Glass (Replaces:W10003440) | ||||
11 | WPW10208263 | Glass, Door | ||||
12 | W10208408 | Door, Outer Assembly | ||||
13 | W10636276 | Door Intermediate (Replaces:W10208269) | ||||
14 | WPW10208270 | Screen, Door | ||||
15 | W11099174 | Trim Ring, Outer Door (Replaces:W10208410) | ||||
16 | W10208411 | Door Handle |
