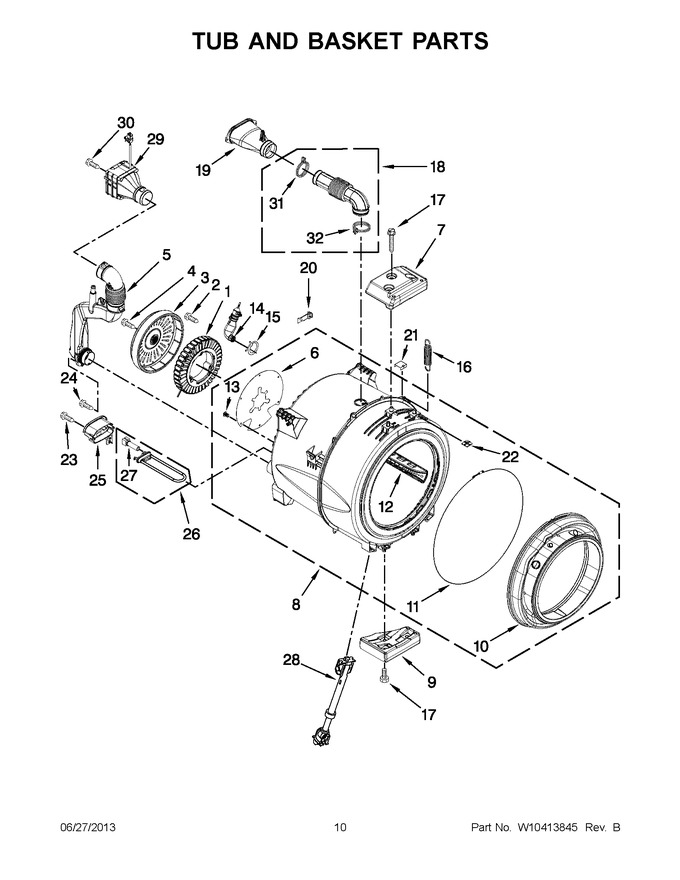

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10365754 | Stator, Motor (Replaces:W10213978) |  |
|||
| 2 | WPW10253476 | Screw, Stator Mounting | |
|||
| 3 | W10365755 | Rotor, Motor (Replaces:W10213980) | |
|||
| 4 | W11253212 | Screw, Rotor Mounting (Replaces:W10253477) | |
|||
| 5 | W11183219 | Pipe, Ventilation Assembly (Replaces:W10261582) | |
|||
| 6 | W10267637 | Shield, Motor | |
|||
| 7 | W10253014 | Counterweight, Top | |
|||
| 8 | WPW10409997 | Tub Assembly, Drum (Replaces:W10355005) | |
|||
| 9 | W10237535 | Counterweight, Bottom | |
|||
| 10 | W11106747 | Bellow (Replaces:W10340443) | |
|||
| 11 | W11218344 | Retainer, Bellow To Tub (Replaces:W10237502) | |
|||
| 12 | W10697830 | Baffle, Tub (Replaces:W10292810) | |
|||
| 13 | W10273613 | Retainer, Push In | |
|||
| 14 | WPW10260500 | Airtrap Assembly | |
|||
| 15 | 371499 | Clamp, Hose | |
|||
| 16 | W11266650 | Spring, Suspension (set Of 2) (Replaces:W10249487) | |
|||
| 17 | W10261496 | Screw, Counterweight | |
|||
| 18 | WPW10568614 | Vent Hose Coupling Assembly | |
|||
| 19 | WPW10352818 | Vent Tube And Cover | |
|||
| 20 | W10316388 | Clip, Harness Diverter | |
|||
| 21 | WP8540092 | Clamp, Tub | |
|||
| 22 | WP8182512 | Nut, Push-in (Replaces:8540072) | |
|||
| 23 | WP9740848 | Screw | |
|||
| 24 | W10306501 | Screw | |
|||
| 25 | W10318155 | Shield, Heater | |
|||
| 26 | WPW10426377 | Heater | |
|||
| 27 | WPW10467289 | Sensor, Temp | |
|||
| 28 | W11415987 | Shock Absorber (Replaces:W10261492) | |
|||
| 29 | WPW10434964 | Fan, Ventilation Assembly | |
|||
| 30 | W10305097 | Screw, M4.1-1.8 X 57 | |
|||
| 31 | W10273034 | Clamp, Vent Hose | |
|||
| 32 | W10353599 | Clamp, Hose | |
