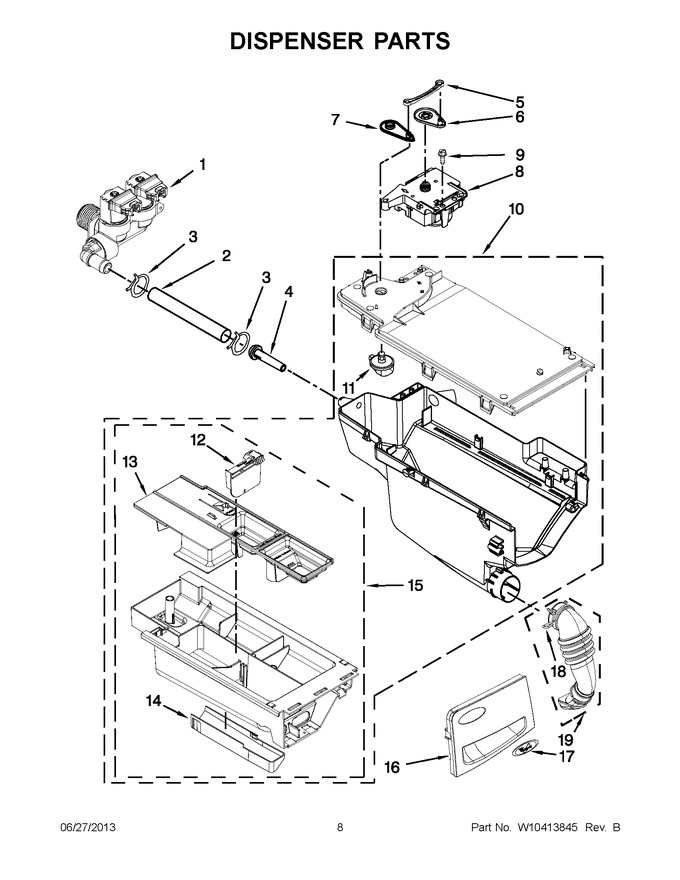

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WPW10289387 | Valve, Water Inlet | ||||
2 | W10538835 | Hose, Inlet Valve To Dispenser | ||||
3 | W10096852 | Clamp, Hose | ||||
4 | WP8183181 | Nozzle, Inlet | ||||
5 | WP8183183 | Lever, Connection | ||||
6 | WP8183184 | Cam, Actuator (Replaces:W10003190) | ||||
7 | WPW10183517 | Lever, Water Distribution | ||||
8 | WPW10352973 | Actuator (Replaces:W10163975) | ||||
9 | WP8540282 | Screw | ||||
10 | WPW10351811 | Housing, Dispenser Assembly | ||||
11 | WP8181712 | Nozzle, Distribution (Replaces:W10003110) | ||||
12 | WPW10121596 | Separator, With Selection Slider (Replaces:W10015200) | ||||
13 | W10289432 | Siphon, Bleach/softener | ||||
14 | W10003140 | Cover, Detergent Drawer | ||||
15 | WPW10256686 | Drawer, Detergent (complete) | ||||
16 | W10316353 | Handle, Drawer (includes Item 17) (red) | ||||
W10327028 | Handle, Drawer (includes Item 17) (silver) | |||||
W10839403 | Handle, Drawer (includes Item 17) (white) (Replaces:W10311731) | |||||
17 | W10854980 | Badge (Replaces:W10117943) | ||||
18 | W10239910 | Clamp, Hose | ||||
19 | WPW10239966 | Hose, Dispenser To Bellow |
