Select Diagram

Diagram for 1 - Control Panel
1 - Control Panel

Diagram for 2 - Body Parts
2 - Body Parts

Diagram for 3 - Oven Door
3 - Oven Door

Diagram for 4 - Lock
4 - Lock

Diagram for 5 - Component Group
5 - Component Group


New Model Search:



Manufacturer: GE

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
42 WB2X8454 Nut Find a Video
43 WB2X8351 Blade Fan Find a Video
248 WB63K5137 Panel Ov Inner Asm Find a Video
298 WB44K5029 Element-convx Find a Video
511 WB26K5069 Convection Fan Motor Find a Video
534 WB26K5050 Oven Cavity Support Find a Video
535 WB26K5042 Screen (s.s. Convx) Find a Video
692 WZ04X0416 Screw Find a Video
804 WB1X1127 Screw Find a Video
810 WB1X1253 Screw Find a Video
828 WB1X1141 Screw Find a Video
924 WB1K5146 Washer Find a Video
939 WB1K5198 Washer Find a Video
993 WB1K5141 Speed Nut-flat Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

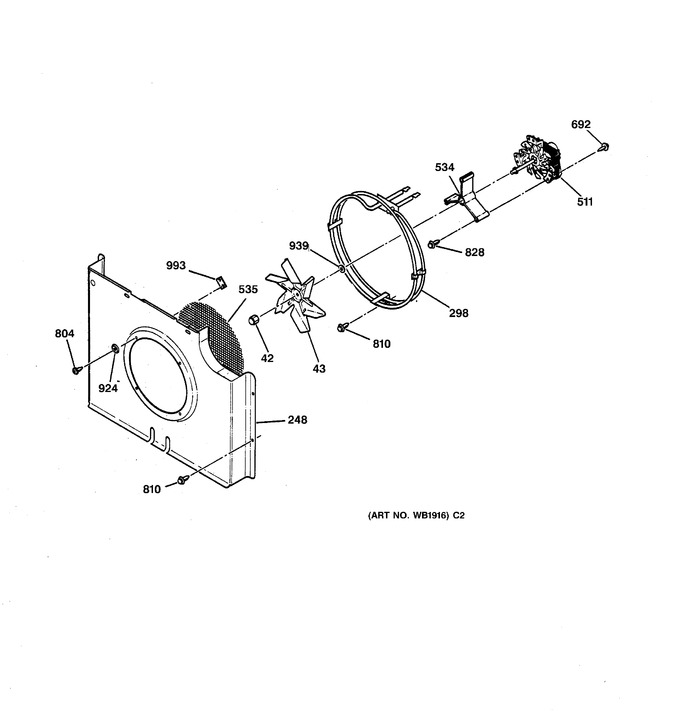

Diagram for JKP18AW1AA
