Diagram # Part Number Description Series Find a Video
44 WB2K5225 Grommet Strip (.020) Find a Video
201 WB63K5166 Oven Body Find a Video
202 WB63K5084 Front Frame Asm Find a Video
203 WB63K5167 Main Back Find a Video
WB63K5168 Main Back Find a Video
205 WB6K5026 Smoke Elim Screen Find a Video
210 WB7K5463 Btm Trim End Cap-lt-ad Find a Video
WB7K5462 Btm Trim End Cap-rt-ad Find a Video
211 WB63K5173 Body Side Find a Video
212 WB63K5080 Cabinet Bottom Find a Video
216 WB34K5069 Wire Cover-element Find a Video
217 WB34K5070 Wire Cover-light Find a Video
218 WB34K5067 Wire Cover Bottom Find a Video
219 WB34K5082 Wire Cover-conduit Find a Video
230 WB35K5048 Insulation-top Sides-in Find a Video
231 WB35K5068 Insulation Wrapper-outer Find a Video
232 WB35K5089 Insulation Back Bttm Find a Video
233 WB34K5080 Heat Reflector Find a Video
241 WB48K5009 Rack Ov (convx Flat) Find a Video
246 WB48M3 Broiler Pan Find a Video
247 WB48K5018 Broiler Pan Grid Find a Video
251 WB44K5013 Bake Element Find a Video
252 WB44K5009 Broil Element Find a Video
253 WB21X5318 Sensor Find a Video
WB21X5347 Sensor Asm Find a Video
256 WB8K5029 Receptacle Find a Video
257 BUY LOCAL Oven Lamp Find a Video
258 WB2X7693 Oven Light Cup Find a Video
259 WB36X389 Ov Lamp Lens Find a Video
260 WB2X7694 Light Lens Bail Find a Video
261 WB24K5061 Jamb Switch Find a Video
262 WB7K5456 Vertical Side Trim-rt-ad Find a Video
WB7K5480 Trim Vent (ad) Find a Video
WB7K5457 Vertical Side Trim-lt-ad Find a Video
266 WB63K5079 Rail Base Find a Video
268 WB7K5459 Bottom Trim-almond Find a Video
273 WB34K5140 Probe Cover Find a Video
279 WB38K5028 Vent Box Asm-black Find a Video
280 WB20X5050 Thermistor Probe Find a Video
281 WB14K5006 Ov Dr Hinge-rt Find a Video
WB14K5007 Ov Dr Hinge-lt Find a Video
286 WB9K5022 Oven Door Spring Find a Video
291 WB2X9152 Cover Find a Video
294 WB2X9719 Broil Element Support Find a Video
431 WB48K5010 Rack Ov (convx Offset) Find a Video
533 WB48X5108 Rack Roast Find a Video
594 WB8K5012 Jack Receptacle Find a Video
595 WB2K5126 Conduit Clamp Find a Video
596 WB8K5013 Housing Asm Receptacle Find a Video
600 WB18K5364 Conduit Wire Asm Find a Video
691 WB1K5176 Trim Screw-almond Find a Video
WB1K5177 Trim Screw-black Find a Video
752 WB1K5200 Screw Find a Video
761 WB1K5029 Screw-black Find a Video
WB1K5062 Screw-brt. Ni. Find a Video
WB1K5211 Trim Screw-almond Find a Video
809 WB1X1137 Screw Find a Video
810 WB1X1253 Screw Find a Video
812 WB1K5191 Screw Flat Zinc Find a Video
813 WB1X1261 Screw Find a Video
862 WB1X1178 Screw Find a Video
875 WH2X930 Scr 8-18 Ab Hxw 3/8 S Find a Video
926 WB1X1260 Ground Washer Find a Video
935 WB1K5174 Washer Find a Video
942 WB1X5573 Washer Find a Video
945 WB1K5046 Lock Washer Find a Video
998 WB1X5572 Nut Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

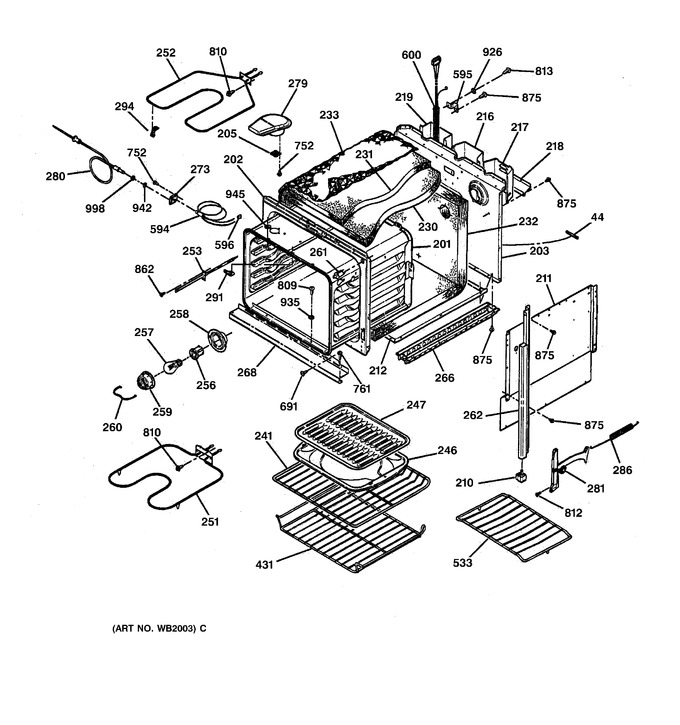

Diagram for JKP18AW1AA
