Diagram # Part Number Description Series Find a Video
1 WB36K5683 Panel Cntl Asm W/oly Find a Video
2 WB7K5461 End Cap-lt-almond Find a Video
WB7K5460 End Cap-rt-almond Find a Video
WB7K5442 Vent Trim Cap Find a Video
8 WB2K5257 Fan Support Find a Video
16 WB27K5334 Clock/oven Control Find a Video
32 WB26K5071 Fan Find a Video
47 WB38K5058 Vent Barrier Find a Video
158 WB24K5033 Limit Switch Find a Video
159 WB24K5085 Limit Switch Find a Video
221 WB63K5201 Side Extension-rt Find a Video
WB63K5200 Side Extension-lt Find a Video
WB63K5209 Body Side Extnsion-lt-up Find a Video
WB63K5210 Body Side Extnsion-rt-up Find a Video
262 WB7K5456 Vertical Side Trim-rt-ad Find a Video
WB7K5457 Vertical Side Trim-lt-ad Find a Video
WB7K5480 Trim Vent (ad) Find a Video
263 WB7K5458 I-brow Trim-almond Find a Video
275 WB34K5078 Vent Box Cover Find a Video
432 WB63K5094 Top Cover Find a Video
676 WB1K5208 Trim Screw-almond Find a Video
691 WB1K5177 Trim Screw-black Find a Video
WB1K5176 Trim Screw-almond Find a Video
760 WB1K5028 Screw Find a Video
761 WB1K5029 Screw-black Find a Video
WB1K5062 Screw-brt. Ni. Find a Video
WB1K5211 Trim Screw-almond Find a Video
800 WB1K5138 Screw Find a Video
832 WB1X1158 Screw Nickel Find a Video
854 WB1X1328 Screw-black Find a Video
WB1X1164 Screw-brt. Ni. Find a Video
875 WH2X930 Scr 8-18 Ab Hxw 3/8 S Find a Video
936 WB1K5065 Snap Bushing Find a Video
938 WB1K5209 Clip Find a Video
999 WB18K5617 Lock Motor Wire Harn-up Find a Video
31-10200 Installation Instruction Find a Video
31-13305 Mini Manual W/wire Diag. Find a Video
49-8707 Pm Manual Use & Care Find a Video
WB18K5634 Main Wire Harness Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

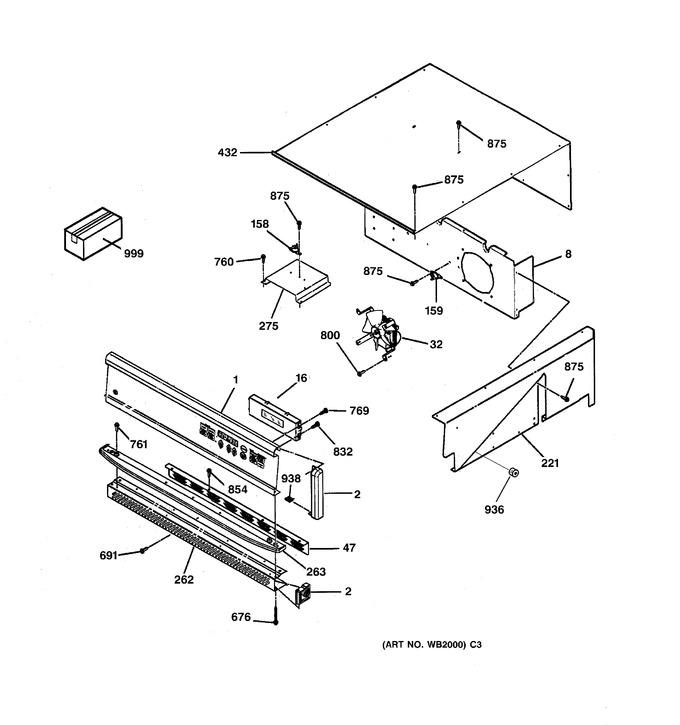

Diagram for JKP18AW1AA
