Diagram for 4 - Lock
4 - Lock

Diagram for 5 - Component Group
5 - Component Group


New Model Search:



Manufacturer: GE

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video

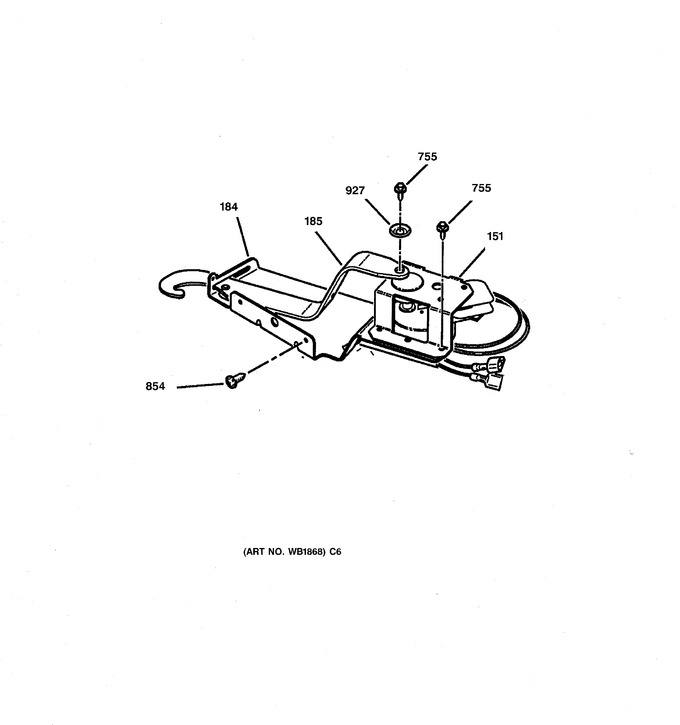

151 WB26K5030 Lock Motor Find a Video
184 WB34K5228 Door Lock Plat Find a Video
185 WB15K5016 Lock Lever Asm Find a Video
755 WZ04X0044 Screw Find a Video
854 WB1X1164 Screw-brt. Ni. Find a Video
WB1X1328 Screw-black Find a Video
927 WB1X1254 Washer Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
