Select Diagram

Diagram for 1 - Control Panel
1 - Control Panel

Diagram for 2 - Body Parts
2 - Body Parts

Diagram for 3 - Oven Door
3 - Oven Door

Diagram for 4 - Lock
4 - Lock

Diagram for 5 - Component Group
5 - Component Group


New Model Search:



Manufacturer: GE

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
79 WB34K5077 Ov Dr Baffle Find a Video
101 WB35K5039 Ov Door Insulation Find a Video
102 WB35K5050 Door Plug Insulation Find a Video
105 WB7K5479 Trim Handle (ad) Find a Video
111 WB55K5018 Ov Dr Lining Plug Find a Video
112 WB55K5017 Ov Dr Lining Asm Find a Video
113 WB2K5127 Ov Dr Ins Retainer Find a Video
114 WB2M1 Ov Dr Glass Retainer Find a Video
117 WB2K5131 Ov Dr Glass Retainer Find a Video
118 WB2K5132 Ov Dr Lining Stiffener Find a Video
121 WB57K5276 Oven Door Outer Glass-ad Find a Video
122 WB57K5102 Ov Dr Intermediate Glass Find a Video
123 WB57K5038 Oven Door Glass-lower Find a Video
124 WB56X1907 Center Glass Find a Video
125 WB34K5255 Heat Reflector Find a Video
126 WB3K5077 Plug Button Find a Video
131 WB2X9168 Inner Glass Seal Find a Video
132 WB32K5038 Oven Door Gasket Find a Video
136 WB15K5121 Handle Ov Dr Find a Video
140 WB56K5161 Almond Oven Door Frame Find a Video
143 WB2K5147 Glass Spacer Find a Video
144 WB2K5395 Reinforcement Plate Find a Video
694 WB1K5157 Screw Find a Video
699 WB1K5150 Screw Find a Video
761 WB1K5029 Screw-black Find a Video
WB1K5211 Trim Screw-almond Find a Video
WB1K5062 Screw-brt. Ni. Find a Video
801 WB1M1 Screw Find a Video
809 WB1X1137 Screw Find a Video
918 WB1K5071 Plastic Rivet Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

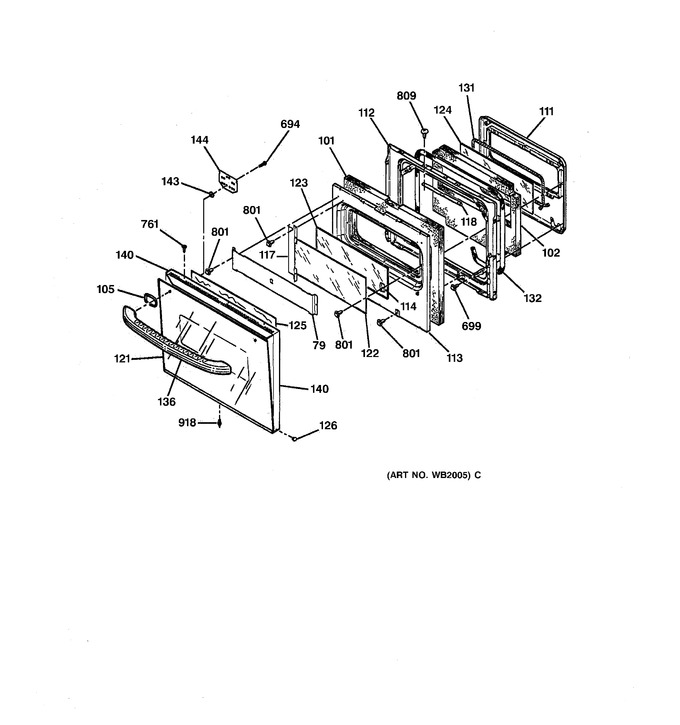

Diagram for JKP18AW1AA
