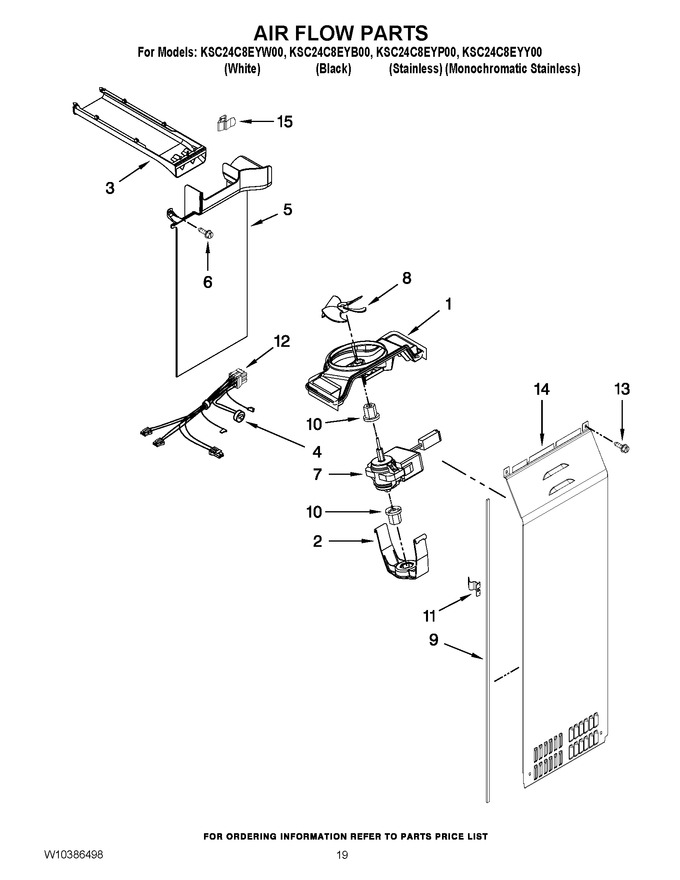

Diagram #	Part Number		Description	Series	Find a Video
1	W10251462		Fan Scroll
2	W10260421		Retainer, Fan Motor
3	W10260388		Air Duct, Upper
4	WPW10225581		Bi-metal, Defrost   (Replaces:W10260437)
5	WPW10382902		Air Duct Freezer
6	WP489478		Screw   (Replaces:W10001260)
7	WP2315549		Fan Motor
8	WP2169142		Fan Blade
9	W10240370		Gasket, Evaporator Cover
10	WP2176759		Fan Grommet (2)
11	W11232019		Clip, Mounting   (Replaces:W10274578)
12	W11551372		Harness, Fan Evaporator (includes No.4)   (Replaces:W10242409)
13	WP693995		Screw, Evap Cover   (Replaces:W10142292)
14	WPW10388269		Cover, Evaporator (includes No.9)
15	W10331728		Clip, Air Duct
