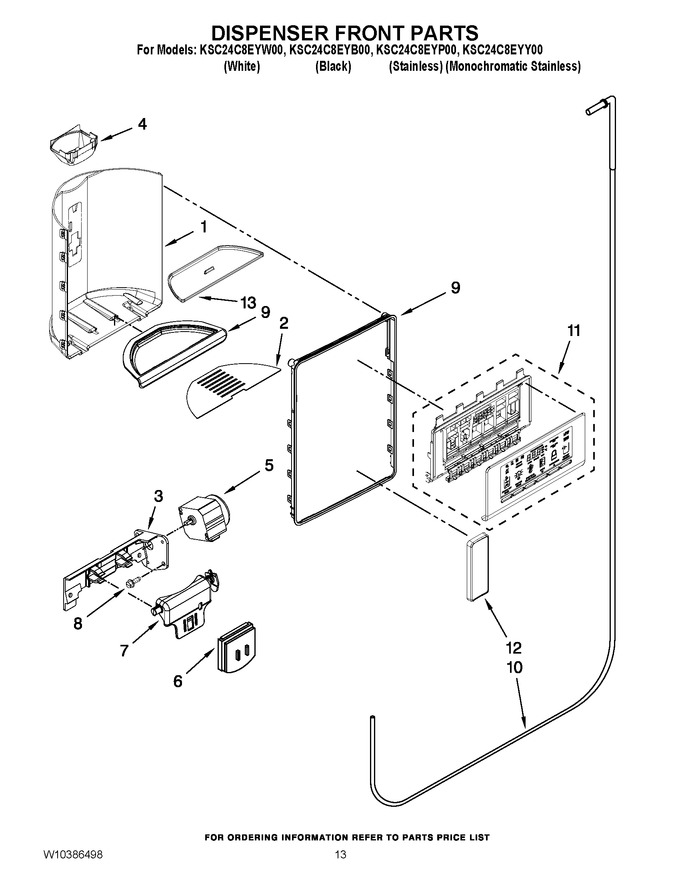

1 | N/P | Housing, Dispenser (not Serviced) | ||||
2 | WPW10317270 | Grate, Drip Tray | ||||
3 | W11130210 | Bracket, Ice Door (Replaces:W10317235) | ||||
4 | WPW10435760 | Chute, Door (Replaces:W10339578) | ||||
5 | WPW10205978 | Motor, Ice Door | ||||
6 | W11130210 | Ice Door Assembly (includes Items 3, 5, 7, & 8) (Replaces:W10355494) | ||||
7 | WPW10346124 | Support, Ice Door | ||||
8 | WP4449745 | Screw | ||||
9 | WPW10317261 | Housing, Tray (silver) | ||||
W10317265 | Housing, Tray (black) | |||||
W10317264 | Housing, Tray (white) | |||||
10 | WPW10279849 | Water Tube | ||||
11 | WPW10393882 | Electronic Control Assy (black) (Replaces:W10366662) | ||||
WPW10393881 | Electronic Control Assy (silver) (Replaces:W10366661) | |||||
12 | WPW10346924 | Pad, Ice & Water (grey) | ||||
W10317250 | Pad, Ice & Water (white) | |||||
W11561037 | Pad, Ice & Water (black) (Replaces:W10317253) | |||||
13 | W10317274 | Drip Tray, Insert (white) | ||||
W10859920 | Drip Tray, Insert (apollo Grey) (Replaces:W10317276) | |||||
W10317275 | Drip Tray, Insert (black) |
