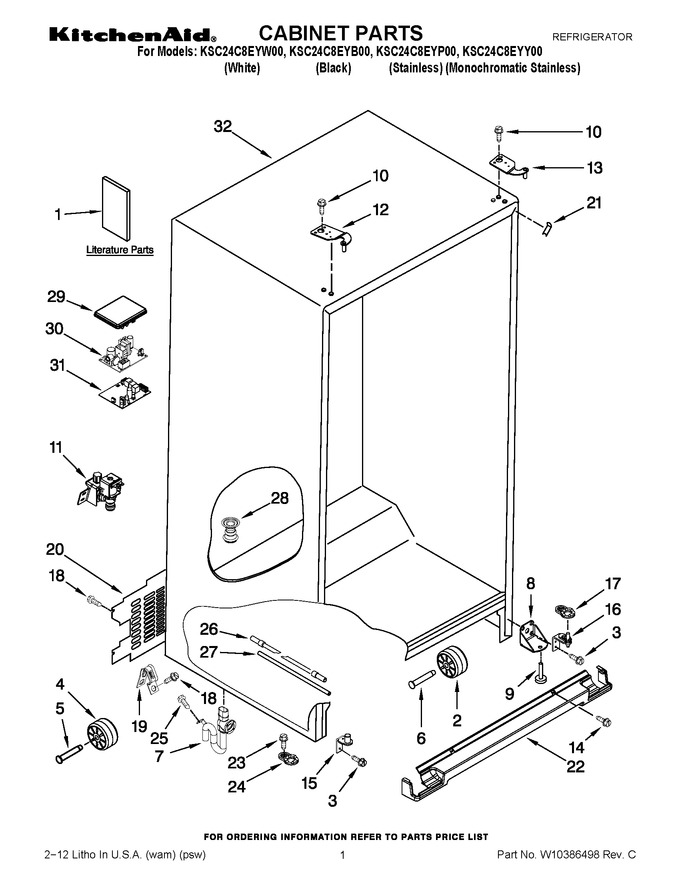

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10287673 | Service & Wiring Sheet |  |
|||
| W10403229 | Energy Label | |
||||
| W10168321 | Use & Care Guide | |
||||
| 2 | WPW10475495 | Front Roller (Replaces:2150304) | |
|||
| 3 | WPW10297485 | Screw | |
|||
| 4 | WP67005149 | Roller (rear) (Replaces:12477102) | |
|||
| 5 | 67006434 | Axle, Roller (Replaces:12477202) | |
|||
| 6 | WPW10285005 | Rivet, Roller | |
|||
| 7 | W11519143 | Extension Tube (Replaces:W10369091) | |
|||
| 8 | W11266052 | Bracket, Foot (Replaces:W10257186) | |
|||
| 9 | WPW10141622 | Foot Brake | |
|||
| 10 | WPW10308750 | Screw | |
|||
| 11 | WPW10238100 | Valve, Inlet | |
|||
| 12 | W10249920 | Hinge, Top (fc) (black) | |
|||
| W11590581 | Hinge, Top (fc) (apollo Grey) (Replaces:W10249922) | |
||||
| W10901051 | Hinge, Top (fc) (white) (Replaces:W10247899) | |
||||
| 13 | W11568758 | Hinge, Top (rc) (black) (Replaces:W10249923) | |
|||
| W11409290 | Hinge, Top (rc) (apollo Grey) (Replaces:W10249925) | |
||||
| W11573587 | Hinge, Top (rc) (white) (Replaces:W10247901) | |
||||
| 14 | WPW10308489 | Screw (midnight Grey) | |
|||
| WP98008545 | Screw (black) (Replaces:W10308487) | |
||||
| WPW10142283 | Screw (white) | |
||||
| 15 | WPW10249943 | Bottom Hinge (fc) (apollo Grey) | |
|||
| WPW10249940 | Bottom Hinge (fc) (white) | |
||||
| W10249941 | Bottom Hinge (fc) (black) | |
||||
| 16 | W10500004 | Bottom Hinge (rc) (apollo Grey) (Replaces:W10257209) | |
|||
| W10500001 | Bottom Hinge (rc) (black) (Replaces:W10257207) | |
||||
| W10500000 | Bottom Hinge (rc) (white) (Replaces:W10257188) | |
||||
| 17 | W10500000 | Door Closer (rc) (white) (Replaces:W10247905) | |
|||
| W10500001 | Door Closer (rc) (black) (Replaces:W10257195) | |
||||
| W10500004 | Door Closer (rc) (apollo Grey) (Replaces:W10257197) | |
||||
| 18 | WPW10141645 | Screw | |
|||
| 19 | 549193 | Clamp, Service Cord | |
|||
| 20 | W10257238 | Cover, Unit (Replaces:W10333887) | |
|||
| 21 | 67003485 | Filler, Wrapper (black) (Replaces:12587703B) | |
|||
| WP12587703AP | Filler, Wrapper (apollo Grey) | |
||||
| 12587703W | Filler, Wrapper (white) | |
||||
| 22 | WPW10713153 | Grille (midnight Grey) (Replaces:W10257234) | |
|||
| WPW10713160 | Grille (white) (Replaces:W10257231) | |
||||
| WPW10713158 | Grille (black) (Replaces:W10257232) | |
||||
| 23 | WP489483 | Screw (Replaces:W10142234) | |
|||
| 24 | W10876191 | Door Closer (fc) (midnight Grey) (Replaces:W10257200) | |
|||
| W10876198 | Door Closer (fc) (white) (Replaces:W10247903) | |
||||
| W10770895 | Door Closer (fc) (black) (Replaces:W10257198) | |
||||
| 25 | WP489464 | Screw (Replaces:W10001250) | |
|||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces:W10277956) | |
|||
| 27 | WPW10279885 | Tube, Filter Outlet (Replaces:W10279857) | |
|||
| 28 | W10247979 | Drain Fitting | |
|||
| 29 | W11226688 | Cover (Replaces:12957702) | |
|||
| 30 | WPW10226427 | Elec. Control-45w Power Supply | |
|||
| 31 | WPW10235503 | Elec. Control | |
|||
| 32 | N/P | Cabinet (not A Serviceable Part) | |
