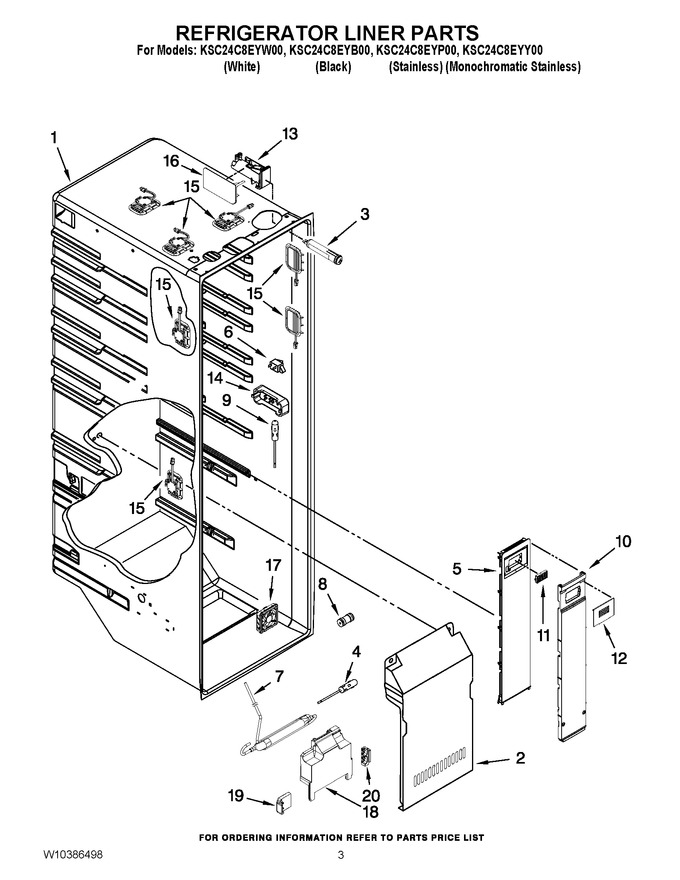

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/P | Liner (not A Serviceable Part) | ||||
2 | WPW10387382 | Cover, Evap | ||||
3 | EDR1RXD1 | Water Filter (Replaces:W10295370) | ||||
4 | W10316760 | Thermistor, Evap Fan (Replaces:W10323459) | ||||
5 | W10341548 | Cover, Air Tower | ||||
6 | W11384469 | Switch Rocker Arm (Replaces:C3680314) | ||||
7 | W11204869 | Reservoir (Replaces:W10341327) | ||||
8 | WP2300868 | Connector (Replaces:W10271541) | ||||
9 | W10316760 | Thermistor (Replaces:W10280385) | ||||
10 | W10513730 | Tower, Air (Replaces:W10404411) | ||||
11 | W10311524 | Air Filter (Replaces:W10315189) | ||||
12 | W10341548 | Air Filter Cover | ||||
13 | WPW10341545 | Housing, Water Filter | ||||
14 | WPW10425252 | Cover, Thermistor | ||||
15 | W11683241 | Led Light Assy (Replaces:W10279030) | ||||
16 | W10300484 | Cover, Water Filter | ||||
17 | WPW10439624 | Fan Assy, Evap (Replaces:W10260460) | ||||
18 | WPW10451893 | Evap Insulation, W/fan Assy (Replaces:W10387386) | ||||
19 | W11028224 | Support, Evap Lh (Replaces:W10223366) | ||||
20 | W10837626 | Support, Evap Rh (Replaces:W10223364) |
