| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WPW10277958 | Connector |  |
|||
| 2 | W10156818 | Fan, Blade (Replaces:12825802) | |
|||
| 3 | W10240365 | Condenser Assembly | |
|||
| 4 | WP489399 | Screw (Replaces:W10142231) | |
|||
| 5 | W10204187 | Clip | |
|||
| 6 | WPW10171469 | Screw | |
|||
| 7 | WPW10277958 | Connector, 1/4 | |
|||
| 8 | 2162499 | Sleeve (Replaces:W10303521) | |
|||
| 9 | W10651374 | Screw (Replaces:W10142294) | |
|||
| 10 | WPW10197428 | Start Device Combination Relay & Overload (production) | |
|||
| WPW10197426 | Start Device Combination Relay & Overload (service) (Replaces:W10136414) | |
||||
| 11 | WPW10223328 | Tube Suction With Check Valve | |
|||
| 12 | W10683556 | Clip, Condenser(2) (Replaces:W10248621) | |
|||
| 13 | WPW10662129 | Capacitor (service) (Replaces:2264017) | |
|||
| 14 | W10858105 | Process Tube (Replaces:2325479) | |
|||
| 15 | WP2205813 | Strap | |
|||
| 16 | WPW10239732 | Evaporator, Fc | |
|||
| 17 | WP2161324 | Clamp | |
|||
| 18 | WP2188874 | Fan, Motor | |
|||
| 19 | WPW10251469 | Tray, Evaporator | |
|||
| 20 | W10376319 | Heat Shield (Replaces:W10343824) | |
|||
| 21 | WPW10143759 | Drier (production) (Replaces:W10286069) | |
|||
| 22 | WPW10643261 | Evaporator, Dual - Rc (Replaces:W10156654) | |
|||
| 23 | W10277704 | Support Plate, Compressor | |
|||
| 24 | WPW10261232 | Power Cord | |
|||
| 25 | W10284726 | Unit Cover, Bottom | |
|||
| 26 | W10837692 | Heater, Defrost (Replaces:W10239728) | |
|||
| 27 | W11038857 | Led Power Supply (Replaces:W10356137) | |
|||
| 28 | W10309988 | Compressor (includes Items 10, 13, 21, & 29) (also Order 876765 Tube Kit) (Replaces:W10253005) | |
|||
| 29 | WPW10169124 | Grommet (4) (production) (Replaces:10835903) | |
|||
| 4388295 | Grommet (4) (service) (Replaces:1100826) | |
||||
| 30 | W10296661 | Clip | |
|||
| 31 | WPW10251467 | Air Baffle | |
|||
| 32 | W11409190 | Tube, Drain (Replaces:W10223368) | |
|||
| 33 | W11590197 | Assy Valve Body (Replaces:W10331270) | |
|||
| 34 | WPW10364560 | Valve Coil, 3-way | |
|||
| 35 | W11676780 | Harness, Wiring Water Valve/diode (Replaces:W10209479) | |
|||
| NI | 978030 | Valve, Access (3/4``) | |
|||
| 876764 | Valve, Access (3/16``) | |
||||
| 978029 | Valve, Access (5/8``) | |
||||
| 978027 | Valve, Access (3/8``) | |
||||
| 978028 | Valve, Access (1/2``) | |
||||
| 978026 | Valve, Access (5/16``) | |
||||
| WP978025 | Valve, Access (1/4``) | |

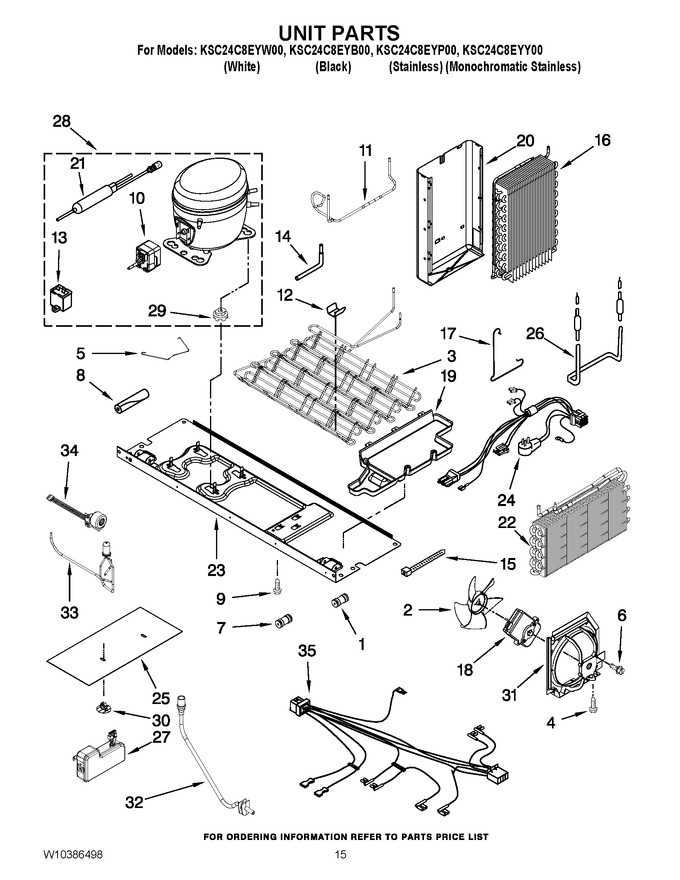

View Diagram in Separate Window
