01 - 8 Cube Compact Ice Maker


02 - Cabinet Back


03 - Crushed Ice Bucket


04 - Drain And Rollers


05 - Evap And Air Handling


06 - Fz Door


07 - Fz Door


08 - Fz Shelving And Ref Light


09 - Ice And Water Cavity


10 - Ice Maker


11 - Machine Compartment - Pan Comp


12 - Machine Compartment - Pan Comp


13 - Machine Compartment - Tec Comp


14 - Ref


15 - Ref Door


16 - Ref Shelving And Drawers

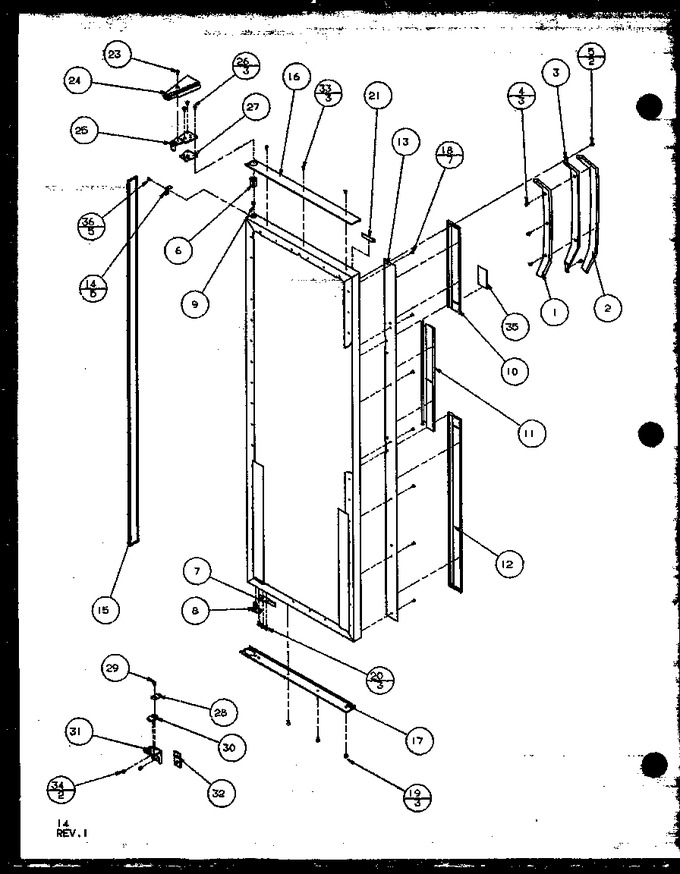

Diagram #	Part Number		Description	Series	Find a Video
1	D7863002		Pad, Handle Inner (wht)
	D7863004		Pad, Handle Inner (alm)
2	D7863104		Pad, Handle Outer (alm)
	D7863102		Pad, Handle Outer (wht)
3	D7826603		Handle
4	M0215116		Screw
5	R9800670		Kit, Screw   (Replaces:M0211030)
6	WP67004975		Bushing, Door (wht)   (Replaces:10263802)
7	12636401B		Stop, Door   (Replaces:C8972402)
8	R0181181		Kit,dr Closure   (Replaces:D7751402)
9	10252902		Filter Bushing
10	D7852007		Trim Upper Ref Door K
	D7852008		Trim
	D7852010		Trim
11	D7853802		Trim Center Refr K
	D7853805		Trim Center Ref Dr
	D7853803		Trim Center Ref
12	D7792803		Trim Lwr Ref Door
	D7792802		Lower Trim Ref Door K
	D7792805		Trim Lwr Ref Door
13	D7793202		Ref. Trim, Retainer
15	C8974102		Trim, Door
16	10271801		Trim-ref Door Top
17	10271701		Trim-ref Door Bot
18	M0213815		Screw
19	WP489349		Screw   (Replaces:M0216515)
20	WP98165		Screw, Sm   (Replaces:M0211018)
23	WP8281196		Screw, Mach   (Replaces:M0202336)
24	10126401		Hinge Cover - Chrome
25	10185101		Top Hinge-e Ct
26	R9800670		Kit, Screw   (Replaces:M0226331)
27	B8389001		Shim, Top Hinge
28	B8387701		Shim, Door Closure
	B8387702		Shim, Door Closure
29	WP489128		Screw   (Replaces:M0220417)
30	R0181181		Kit,dr Closure   (Replaces:D7748301)
31	10163602		Rh Bot Hinge-bk E Ct
32	B8386703		Kit,btm Hinge Shim
	B8386701		Kit,btm Hinge Shim
	B8386702		Kit,btm Hinge Shim
33	W11245710		Screw, Sm (stnls)   (Replaces:M0210417)
34	WP67006715		Screw   (Replaces:M0233847)
35	C8984306		Thinplate K
