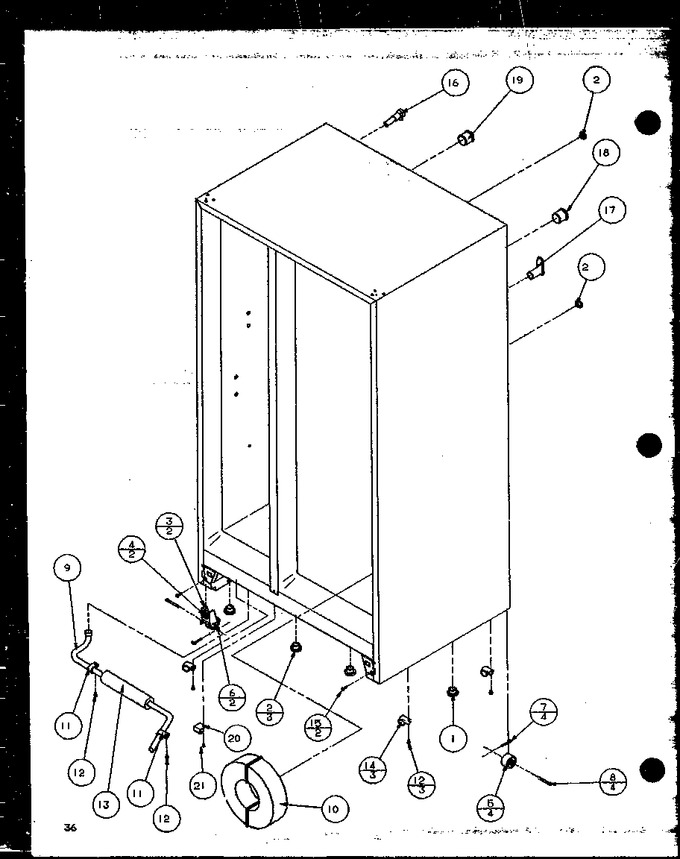

Diagram #	Part Number		Description	Series	Find a Video
1	A3076901		Plug-button
2	A3080001		Plug, Button (blk)
3	C8742401		Assy, Roller Bracket
4	M0286708		Nut, Speed
5	WP12580304		Roller   (Replaces:M0520102)
6	WPM1205302		Rivet
7	M1200004		Cotter Pin K
8	M1200202		Pin K
9	10393002		Drain Tube
10	D7787801		Tank, Coil Water
11	10161301		Holder Tube
	M0102303		Clamp
12	WP489069		Screw   (Replaces:M0220617)
13	A0329814		Tubing Insulation By Inch
14	WP488366		Clamp Tube   (Replaces:M0102330)
15	M0204339		Screw Bolt K
16	10277304		Assy, Fill Tube
17	C8971902		Tunnel, Heat Ex.
18	10187501		Tunnel Wire
19	10187601		Tunnel Wire
20	C8985801		Bracket, Retainer
21	WP12990527		Screw   (Replaces:M0219916)
NI	C8956101		Assy, Roller Bracket
