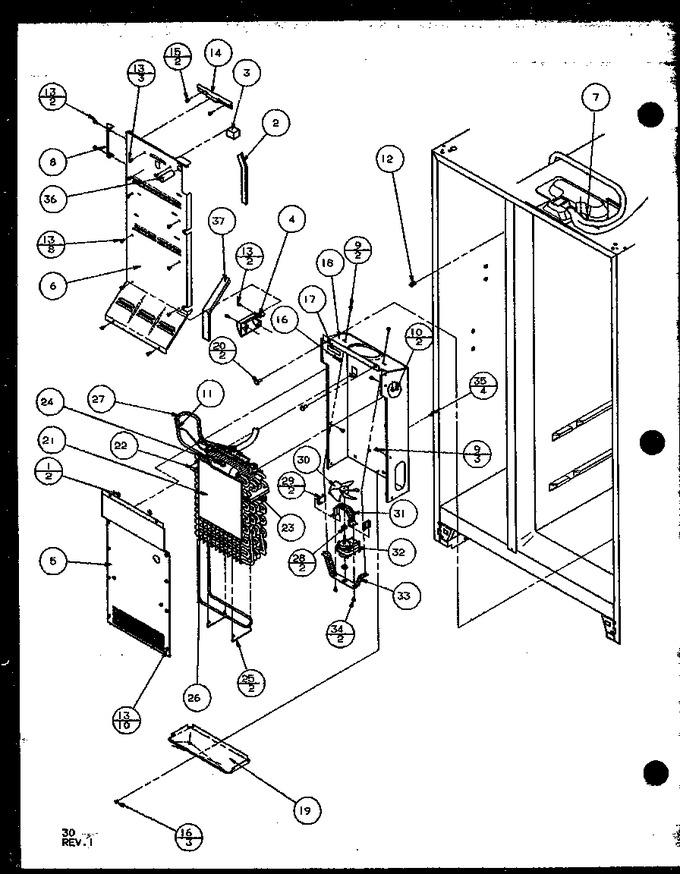

05 - Evap And Air Handling


06 - Fz Door


07 - Fz Door


08 - Fz Shelving And Ref Light


09 - Ice And Water Cavity


10 - Ice Maker


11 - Machine Compartment - Pan Comp


12 - Machine Compartment - Pan Comp


13 - Machine Compartment - Tec Comp


14 - Ref


15 - Ref Door


16 - Ref Shelving And Drawers


Diagram #	Part Number		Description	Series	Find a Video
1	B8324801		Clip Ground
2	B8386602		Gasket
3	C8976102		Gasket, Air Block
4	D7786902		Cover, M.k. Air
5	D7865907		Cover, Evaporator
6	D7821124		Inner Fz Bach Pnt
7	10281401		Harness, Ref Liner
8	D7838302		Cover, Supply Air
9	WP12990527		Screw   (Replaces:M0219916)
10	WP489399		Screw   (Replaces:M0232903)
11	WPW10339879		Tie   (Replaces:M0321202)
12	WPM0322202		Tie Wire
13	67006425		Screw, Sm   (Replaces:M0209616)
14	C8976201		Clamp
15	WP98165		Screw, Sm   (Replaces:M0211018)
16	10098801		Rivet
17	B5757707		Gasket, Foam
18	D7865804		Evaporator Shield
19	D7850202		Drip Tray Pnt.
20	M0580003		Grommet
21	B8327901		Gasket, Evap.
22	B8385502		Block-lh Air Coil
23	B8385601		Block P M Air Coil
24	WPC8972006		Thermostat Tri 111
25	C8983101		Clip, Evap. Heater
26	WPD7872801		Heater, Defrost
27	R0170041		Assy,low Side-thin Wall Evap
28	WP2264462		Grommet   (Replaces:A1017202)
29	A1047901		Shim
30	12033101		Fan-evap   (Replaces:C8795501)
31	C8881301		Brkt Evap Fan
32	WPC8891605		Motor, Evap Fan   (Replaces:C8891601)
33	D7767701		Bracket, Motor Shroud
34	WP12990527		Screw   (Replaces:M0219916)
35	M0580002		Grommet A
36	A3127414		Ext. Fill Tube
