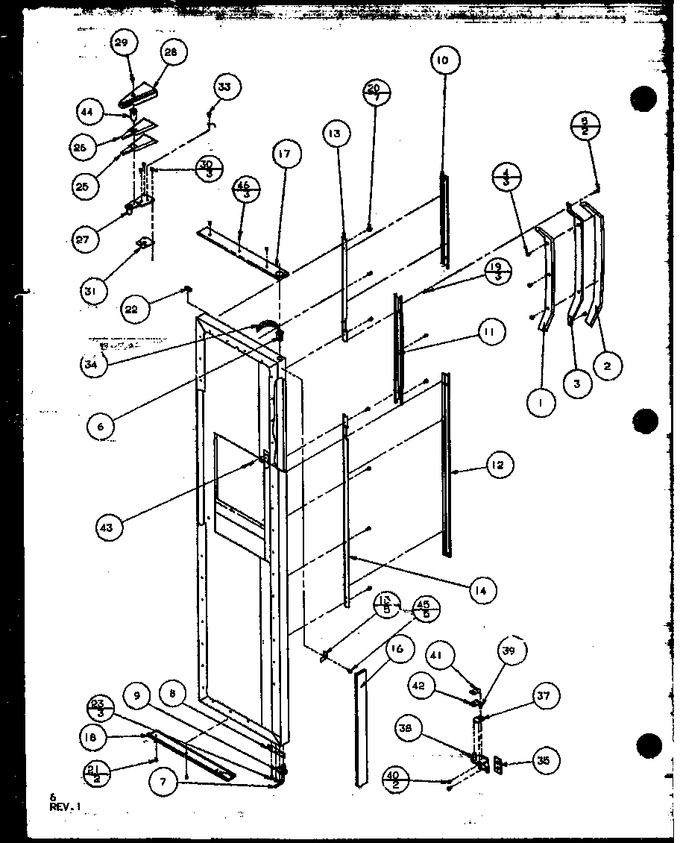

Diagram #	Part Number		Description	Series	Find a Video
1	D7863002		Pad, Handle Inner (wht)
	D7863004		Pad, Handle Inner (alm)
2	D7863104		Pad, Handle Outer (alm)
	D7863102		Pad, Handle Outer (wht)
3	D7826603		Handle
4	M0215116		Screw
5	R9800670		Kit, Screw   (Replaces:M0211030)
6	WP67004977		Bushing, Top   (Replaces:C8964401)
7	WPB5705307		Tubing Plastic   (Replaces:B5705308)
8	12636401B		Stop, Door   (Replaces:C8972402)
9	R0181181		Kit,dr Closure   (Replaces:D7751401)
10	D7852103		Upper Trim Frz Dr (w)
	D7862105		Upper Trim, Fz Door, Almond
	D7852102		Trim Upper Frz Door (b)
11	D7854002		Trim Center Frz (b)
	D7854005		Trim Center Frz (l)
	D7854003		Trim Center Frz (w)
12	D7792702		Lower Trim Frz Door (b)
	D7792705		Trim, Lwr Frz Door (l)
	D7792703		Trim, Lwr Frz Door (w)
13	D7793002		Retainer, Trim
14	D7793102		Retainer, Trim
16	C8974102		Trim, Door
17	10272001		Trim Fz Door Top
18	10271901		Trim-fz Door Bot.
19	M0216517		Screw
20	M0213815		Screw
21	WP489349		Screw   (Replaces:M0216515)
23	WP98165		Screw, Sm   (Replaces:M0211018)
25	10126501		Insulation, Hinge Cover
26	10126601		Foil, Hinge Cover V/a
27	10185101		Top Hinge-e Ct
28	10126401		Hinge Cover - Chrome
29	WP8281196		Screw, Mach   (Replaces:M0202336)
30	R9800670		Kit, Screw   (Replaces:M0226331)
31	B8389001		Shim, Top Hinge
33	W11214483		Screw, Mach   (Replaces:M0202321)
34	10164202		Harness Fz Door
35	B8386702		Kit,btm Hinge Shim
	B8386701		Kit,btm Hinge Shim
	B8386703		Kit,btm Hinge Shim
37	R0181181		Kit,dr Closure   (Replaces:D7748301)
38	10163601		Bottom Hinge, Frz
39	WP489128		Screw   (Replaces:M0220417)
40	WP67006715		Screw   (Replaces:M0233847)
41	B8387702		Shim, Door Closure
42	B8387701		Shim, Door Closure
43	WP489399		Screw   (Replaces:M0232903)
44	A3012532		Tubing Plastic
46	W11245710		Screw, Sm (stnls)   (Replaces:M0210417)
