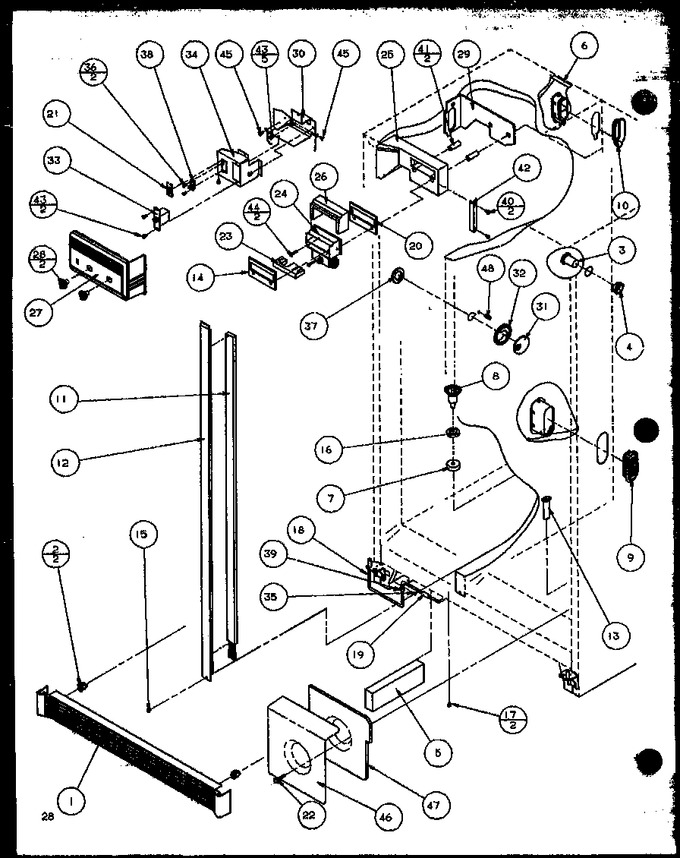

Diagram #	Part Number		Description	Series	Find a Video
1	WPD7786702		Grille Toe L V   (Replaces:D7786704)
2	M0117301		Clip, Grille
3	A3187702		Tunnel, Air
4	A3187801		Retainer
5	B5629045		Insulation
6	B5705320		Tubing, Plastic (wtr Tank/do
7	WPB8381501		Gasket, Drain Tube
8	W10815413		Funnel, Drain   (Replaces:D7753901)
9	D7785401		Grille-rtn Air
10	10178001		Tunnel Air Supply
11	D7837501		Heater, Mullion
12	D7788602		Mullion,vert-white E Ct
	D7788606		L Vt Mull-pnt
13	D7793501		Grommet
14	67004031		Gasket, Damper   (Replaces:10383201)
15	12991101		Screw, Sm   (Replaces:M0210816)
16	WPM0500703		Seal, O Ring
17	M0580007		Grommet, Screw
18	WPB5705307		Tube, Plastic , 68``   (Replaces:B5705321)
19	WP4373559		Union K   (Replaces:B5706901)
20	WPB8345401		Gasket, Damper
21	B8391602		Collar, Switch
22	C6457701		Clip K
23	C8902601		Insert, Control
24	R9900109		Control, Damper   (Replaces:D7547407)
25	10176602		Air Duct, Waxed
26	D7788201		Insulation
27	D7790324		Cover Cont
28	D7795806		Kit Knob
29	10177901		Gasket, Air Duct
30	D7822402		Box, Bottom Control
33	R0161092		Control-temp   (Replaces:C3615024)
34	D7868601		Box Control Top
35	WP90767		Screw, Sm   (Replaces:M0211016)
36	M0234003		Screw
38	M0342601		Switch, Heater
39	M0102301		Clamp
40	WP489474		Screw 1``   (Replaces:M0211021)
41	A3044208		Spacer Damper
42	C8977301		Clamp
43	WP489464		Screw   (Replaces:M0211217)
44	M0216539		Screw
45	WP489399		Screw   (Replaces:M0232903)
46	D7879301		Cover, Tank
47	D7793402		Insulation Cut Tank
