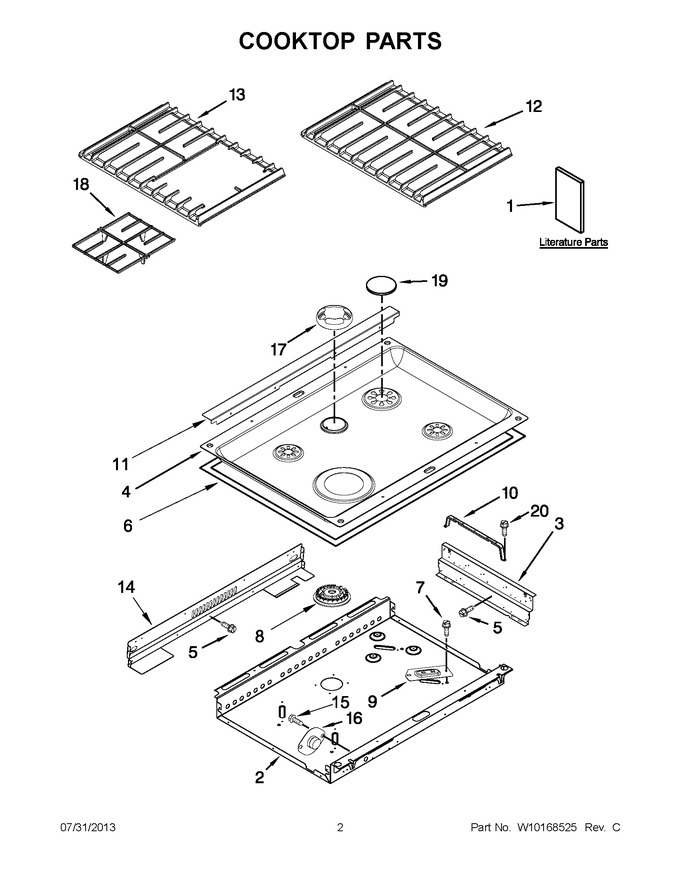

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10112146 | Sheet, Tech (french) |  |
|||
| W10118262 | Installation Instructions | |
||||
| W10118261 | Use & Care Guide | |
||||
| 9763467 | Guide Easy Set | |
||||
| 9762761 | Tips, Safe Cooking (english) | |
||||
| W10112145 | Sheet, Tech (english) | |
||||
| 9759133 | Safer Cooking Tips (french) | |
||||
| 9757680 | Instructions, Anti-tip | |
||||
| 2 | W10589943 | Burner Box (Replaces:W10153103) | |
|||
| 3 | 9761784 | Frame, Cooktop | |
|||
| 4 | WPW10175850 | Cooktop (black) (Replaces:W10106250) | |
|||
| W10106260 | Cooktop (biscuit) | |
||||
| WPW10175851 | Cooktop (white) (Replaces:W10106270) | |
||||
| 5 | WP3196557 | Screw (Replaces:3196537) | |
|||
| 6 | W10109920 | Gasket (tape) | |
|||
| 7 | WP12990527 | Screw (Replaces:3400843) | |
|||
| 8 | WPW10406243 | Burner Head, Auxiliary (6k) (right Front & Left Rear) (Replaces:8286181) | |
|||
| WPW10406797 | Burner Head, Rapid (12k) (right Rear) (Replaces:8286182) | |
||||
| 9 | 9763445 | Bracket, Burner | |
|||
| 10 | WP9756821 | Support, Wiring | |
|||
| 11 | WP9763436 | Cover, Top Rear | |
|||
| 12 | WP9761555SD | Grate, Burner Right (satin Cumberland | |
|||
| WP9761555CB | Grate, Burner Right (coal Black) | |
||||
| 9761555SN | Grate, Burner Right (satin Moleskin) | |
||||
| 13 | 9761556SN | Grate, Burner Left (satin Moleskin) | |
|||
| WP9761556CB | Grate, Burner Left (matte Black) | |
||||
| 9761556SD | Grate, Burner Left (satin Cumberland) | |
||||
| 14 | 9759627 | Cover, Cooktop Rear | |
|||
| 15 | W10491985 | Screw (Replaces:3196160) | |
|||
| 16 | WP9759944 | Thermostat, 70c | |
|||
| 17 | 9760225BT | Vent, Center (biscuit) | |
|||
| WP9760225BL | Vent, Center (black) | |
||||
| 9760225WH | Vent, Center (white) | |
||||
| 18 | 9761557SN | Grate, Insert (satin Moleskin) | |
|||
| WP9761557SD | Grate, Insert (satin Cumberland) | |
||||
| WP9761557CB | Grate, Insert (matte Black) | |
||||
| 19 | WP9761562SD | Cap, Burner 6k (right Front & Left Rear) (satin Cumberland) | |
|||
| WP8284669 | Cap, Burner 6k (right Front & Left Rear) (coal Black) | |
||||
| WP9761562SN | Cap, Burner 6k (right Front & Left Rear) (satin Moleskin) | |
||||
| 9761563CB | Cap, Burner 12.5k (right Rear) (coal Black) | |
||||
| 9761563SD | Cap, Burner 12.5k (right Rear) (satin Cumberland) | |
||||
| 9761563SN | Cap, Burner 12.5k (right Rear) (satin Moleskin) | |
||||
| 20 | WP4449809 | Screw | |
