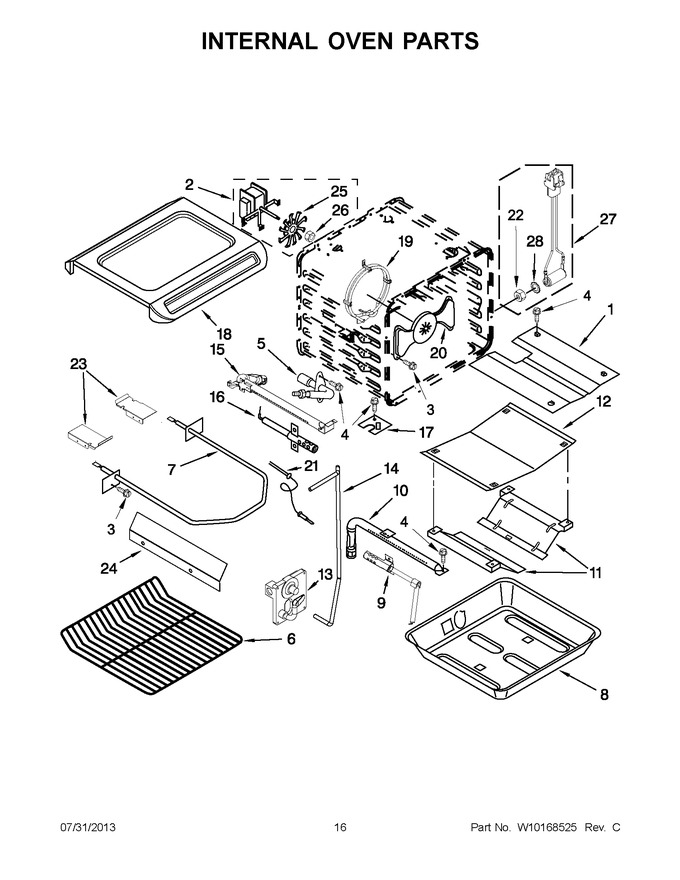

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 9752980 | Shield, Broiler Flame |  |
|||
| 2 | WP4451583 | Motor, Convection Fan | |
|||
| 3 | WP4449154 | Screw | |
|||
| 4 | W11233072 | Screw (Replaces:3196176) | |
|||
| 5 | 9757779 | Fitting, Broiler | |
|||
| 6 | WPW10179152 | Rack, Oven (Replaces:4448717) | |
|||
| 7 | 9760776 | Element, Broil | |
|||
| 8 | WPW10145744 | Pan Support, Bake (Replaces:4453957) | |
|||
| 9 | WP9760229 | Electrode, Bake Burner | |
|||
| 10 | WP9760228 | Burner, Bake Log | |
|||
| 11 | WP9752737 | Shield, Oven | |
|||
| 12 | 4453984 | Shield, Bake Flame | |
|||
| 13 | WP9763716 | Assembly, Valve | |
|||
| 14 | 9756831 | Tube, Broil | |
|||
| 15 | WPW10111219 | Burner, Broil | |
|||
| 16 | WP8054129 | Electrode, Broil | |
|||
| 17 | 4454009 | Cover, Ignitor | |
|||
| 18 | WPW10272546 | Pan, Oven Bottom (Replaces:4453920) | |
|||
| 19 | 9760777 | Element, Convect | |
|||
| 20 | W10104790 | Cover, Fan | |
|||
| 21 | WP9755542 | Probe, Temperature | |
|||
| 22 | WP9755546 | Nut, Hidden | |
|||
| 23 | W10153094 | Shield, Element (left Hand) | |
|||
| W10153093 | Shield, Element (right Hand) | |
||||
| 24 | W10153101 | Diverter, Air (Replaces:W10105420) | |
|||
| 25 | W10758272 | Blade, Fan (Replaces:W10116351) | |
|||
| 26 | WPW10116349 | Nut, Acorn | |
|||
| 27 | 8186589 | Jack, Meat Probe (Replaces:9755543) | |
|||
| 28 | WP9755547 | Washer, Lock | |
