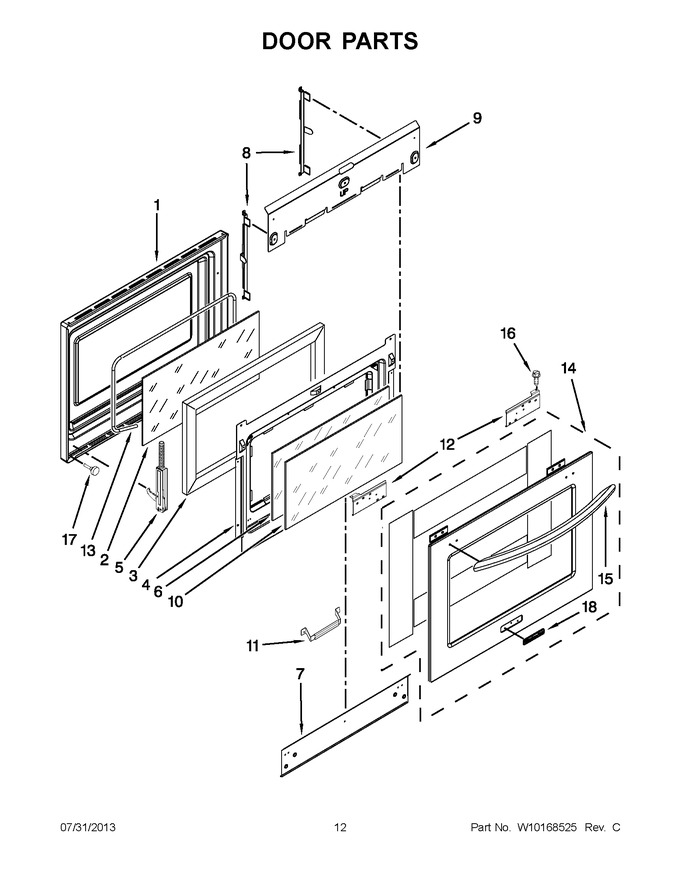

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP9759413 | Panel, Door |  |
|||
| 2 | WP9757706 | Glass, Inner | |
|||
| 3 | WP4451722 | Insulation, Door | |
|||
| 4 | WP4457132 | Retainer, Glass | |
|||
| 5 | WP9760579 | Hinge, Door (right) | |
|||
| WP9760574 | Hinge, Door (left) (Replaces:9760580) | |
||||
| 6 | WP9759225 | Glass, Inner | |
|||
| 7 | 4457114 | Shield, Heat Bottom | |
|||
| 8 | WP9759229 | Bracket, Side | |
|||
| 9 | WP4457104 | Heat, Sheild (Replaces:4457103) | |
|||
| 10 | WP9759225 | Glass, Inner | |
|||
| 11 | WP9759230 | Bracket, Central | |
|||
| 12 | W10246113 | Bracket, Handle (left) (Replaces:9763496) | |
|||
| W10246114 | Bracket, Handle (right) (Replaces:9763497) | |
||||
| 13 | 8522415 | Seal, Window | |
|||
| 14 | W10131889 | Assembly, Outer Door (white) | |
|||
| W10155557 | Assembly, Outer Door (stainless) | |
||||
| W10131890 | Assembly, Outer Door (biscuit) | |
||||
| W10131888 | Assembly, Outer Door (black) | |
||||
| 15 | 8303774BT | Handle, Door (biscuit) | |
|||
| W10292382 | Handle, Door (white) (Replaces:8303774WH) | |
||||
| WPW10292381 | Handle, Door (black) (Replaces:8303774BL) | |
||||
| W10899599 | Handle, Door (stainless) (Replaces:8303774SS) | |
||||
| 16 | WPW10132940 | Screw (Replaces:3196184) | |
|||
| 17 | 4448520 | Bumper, Door | |
|||
| 18 | 8304603SS | Badge (stainless) | |
|||
| 8304603BL | Badge (black) | |
||||
| 8304603WH | Badge (white) | |
||||
| 8304603BT | Badge (biscuit) | |
