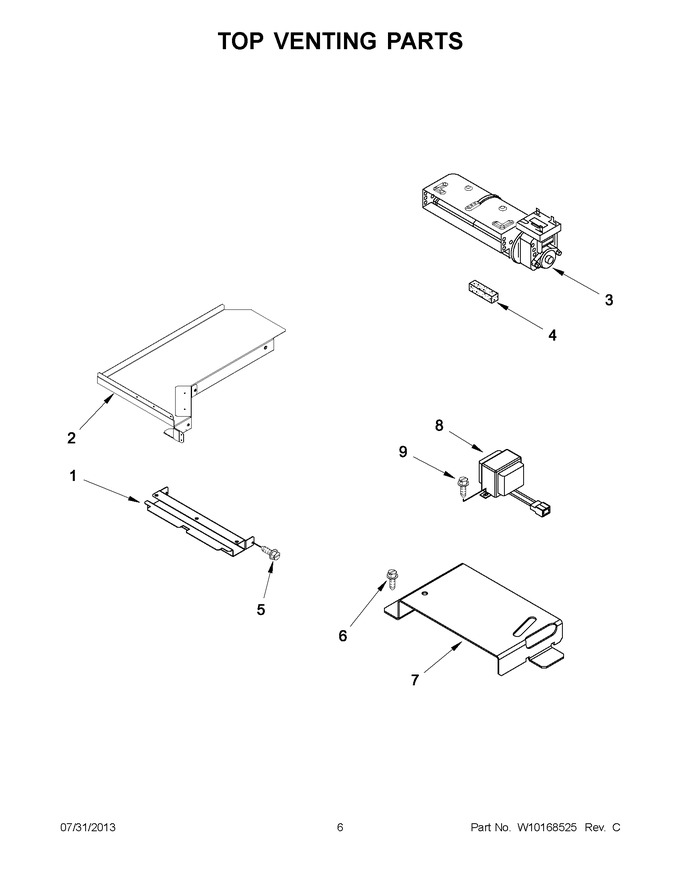

Diagram #	Part Number		Description	Series	Find a Video
1	W10118278		Front, Air Duct
2	W10068590		Top, Air Duct (right)
	W10068600		Top, Air Duct (left)
3	W10810687		Blower, 60mm   (Replaces:9759320)
4	W10491987		Block, Foam   (Replaces:4451758)
5	WP4449040		Screw
6	WP4449809		Screw
7	WP9757829		Bracket, Transformer
8	WPW10111628		Transformer, Control
9	WP3196557		Screw   (Replaces:3196537)
